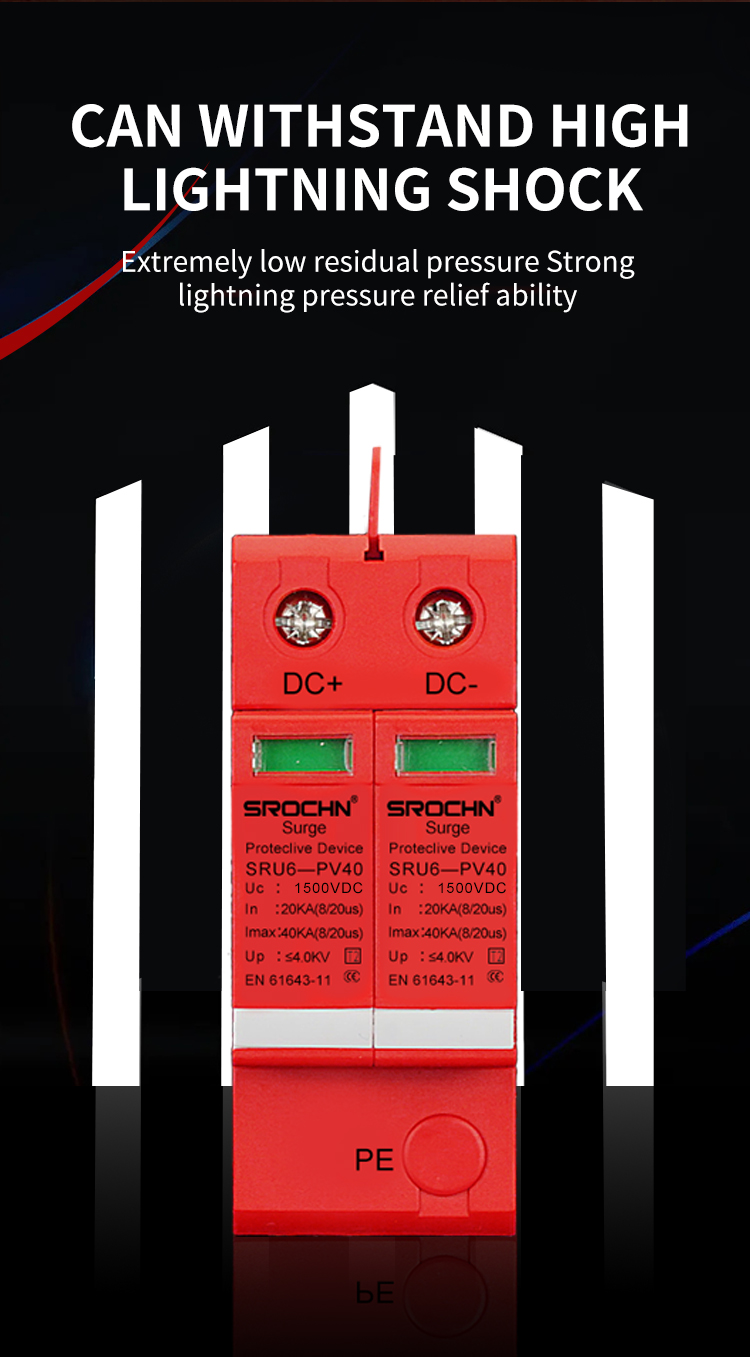

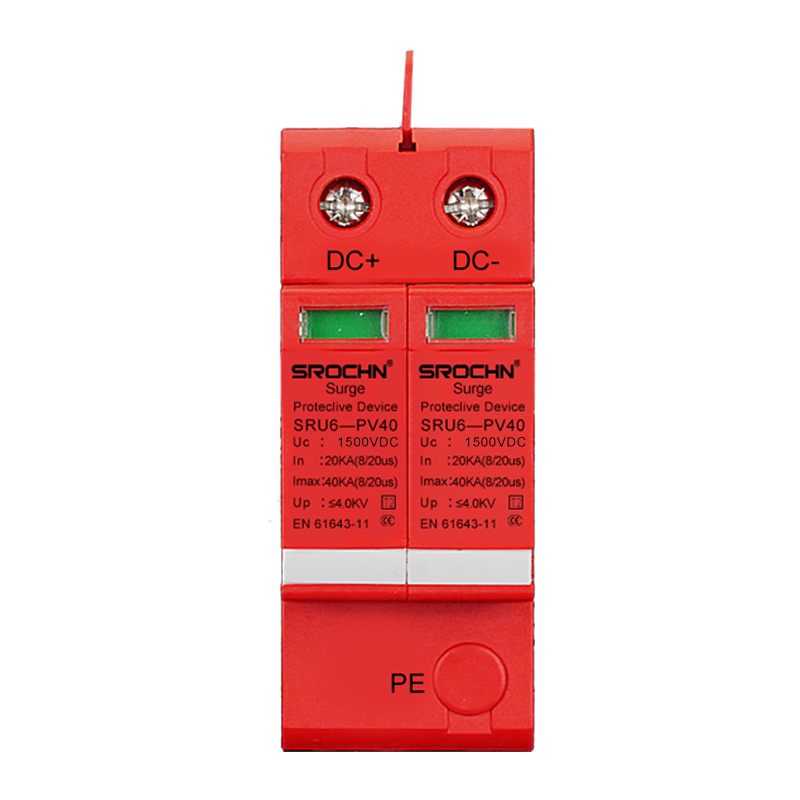

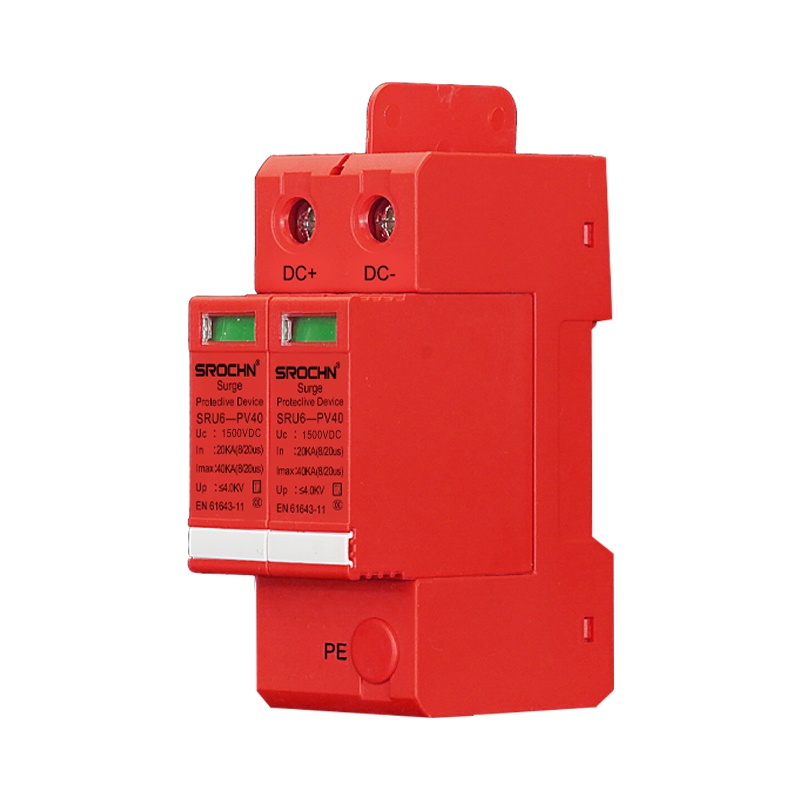

1500VDC T2 Surge Protective Device for Lightning Protection Applications
Technical Features
The unit features a standard discharge current rating of 20kA, demonstrating consistent performance under repeated surge conditions. Its T2 classification confirms compliance with international standards for surge protective devices, specifically designed to handle indirect lightning effects and switching surges in electrical distribution systems. The 1500VDC voltage rating makes it suitable for various highvoltage DC applications where reliable surge protection is required.

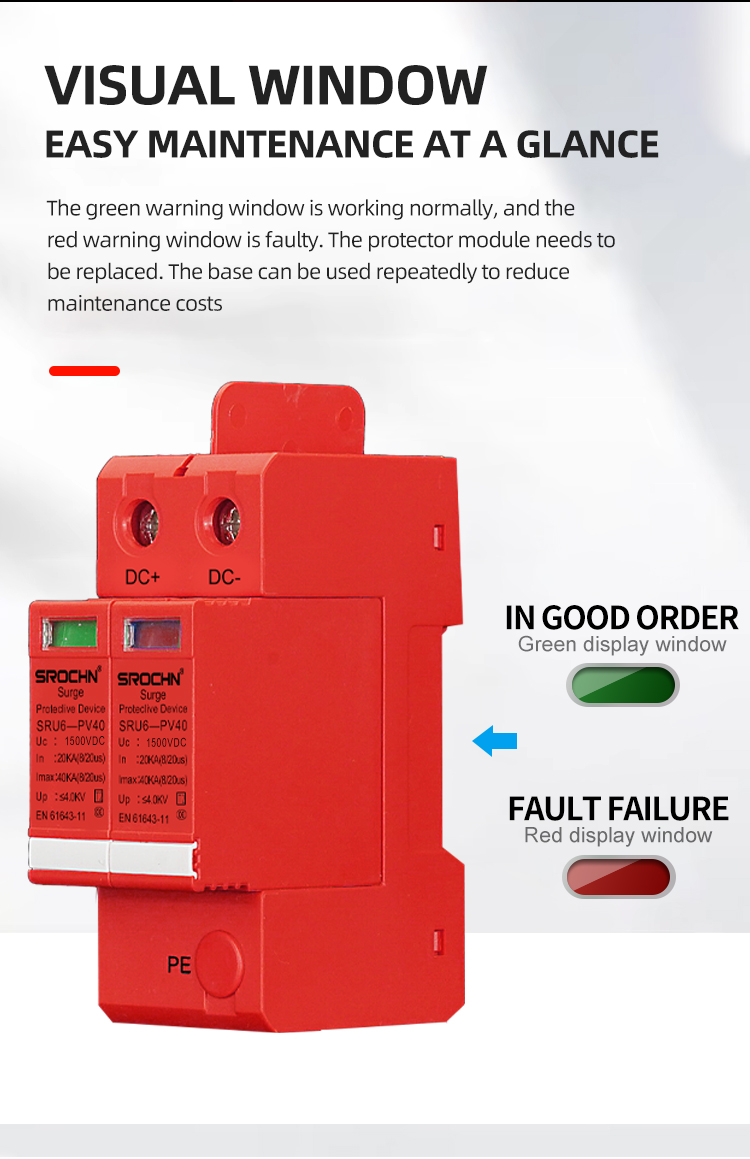

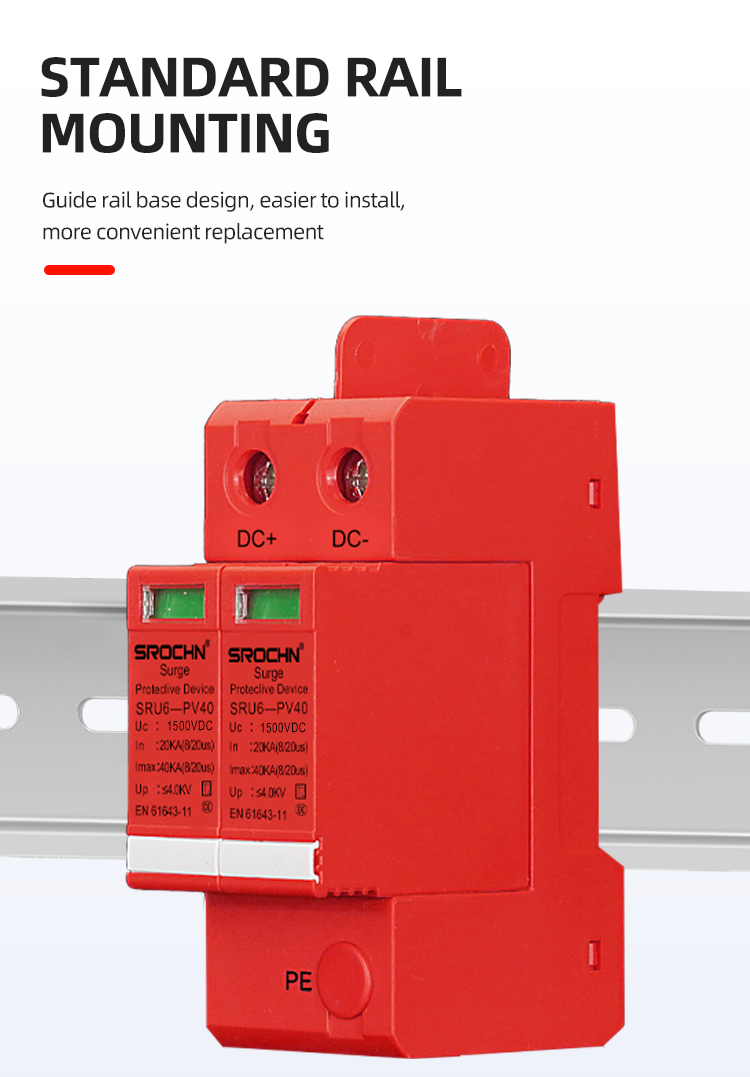

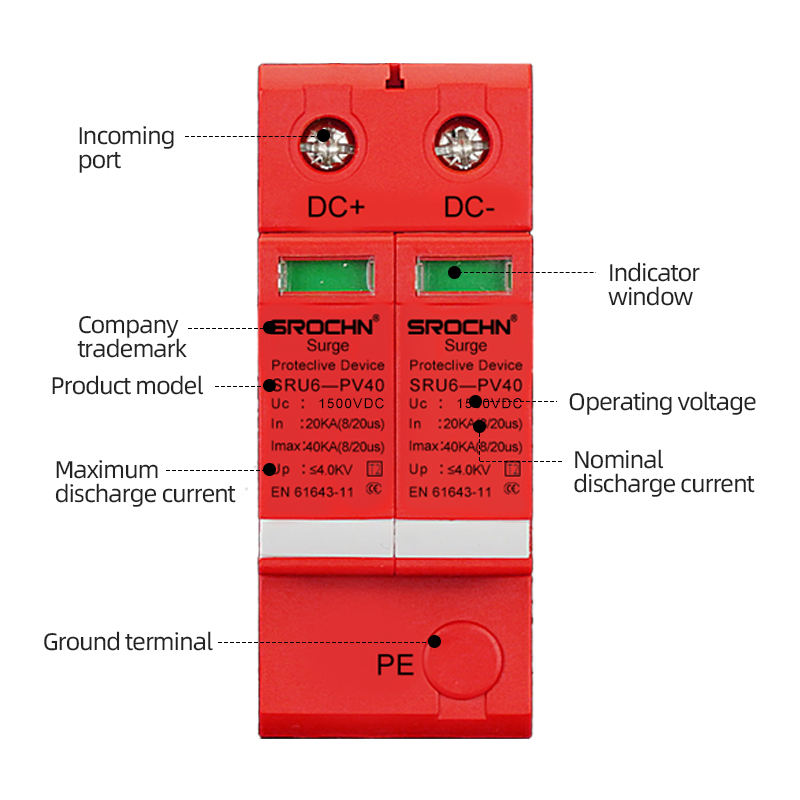

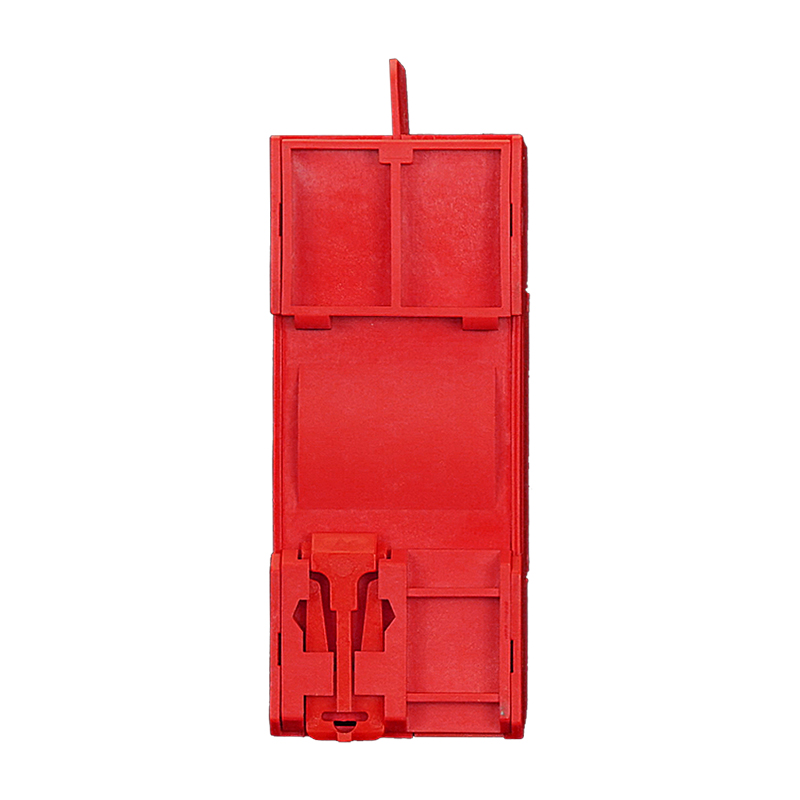

The incorporated thermal protection mechanism automatically disconnects the unit during overload situations or at endoflife failure, ensuring continued system safety. A visual status indicator provides clear operational feedback through colorcoded display, allowing for quick assessment of the device's condition. DIN rail mounting enables straightforward installation in standard electrical enclosures, while screw terminal connections provide secure wiring implementation.
Application Scenarios
This protective device finds primary application in largescale photovoltaic systems, where it protects solar inverters, combiner boxes, and monitoring equipment from lightninginduced surges. Industrial applications include protection for highvoltage motor drives, control systems, and automation equipment in manufacturing environments. The unit is also suitable for electric vehicle charging infrastructure, telecommunications power systems, and backup power installations where highvoltage DC power protection is required.
Additional application areas include railway electrification systems, mining equipment power supplies, and other industrial settings where electrical systems are exposed to potential surge events. The device provides effective protection for both indoor and sheltered outdoor applications when installed in appropriate enclosures.

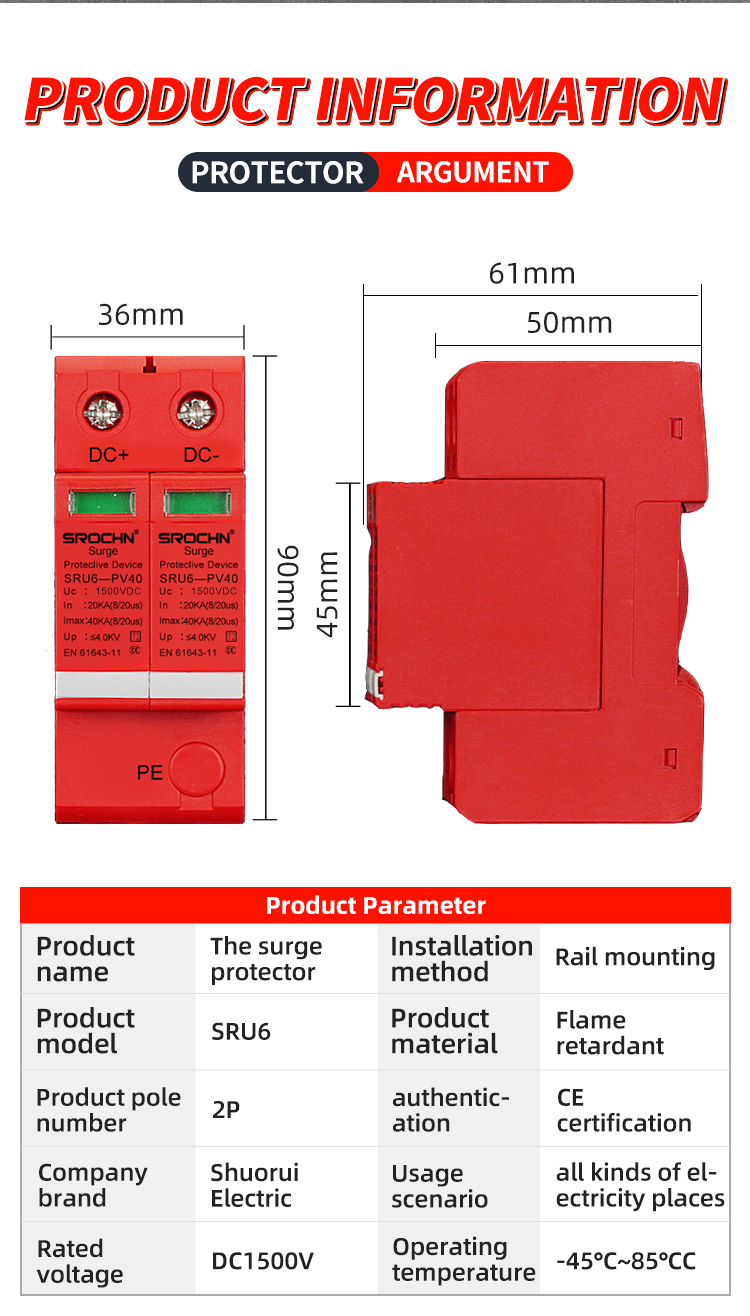

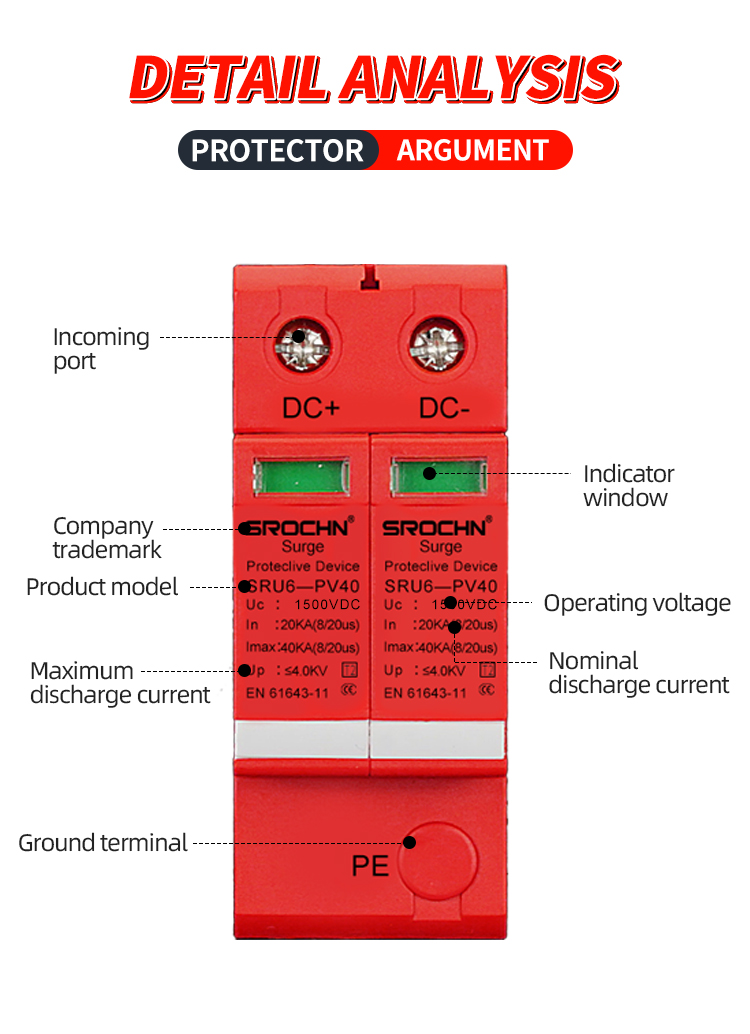

Technical Specifications
Maximum discharge current: 40kA (8/20μs )
Standard discharge current: 20kA (8/20μs )
Type classification: T2
Rated voltage: 1500VDC
Pole configuration: 2P
Protection Level: ≤4.0kV
Housing material: Plastic
Response time: <25 nanoseconds

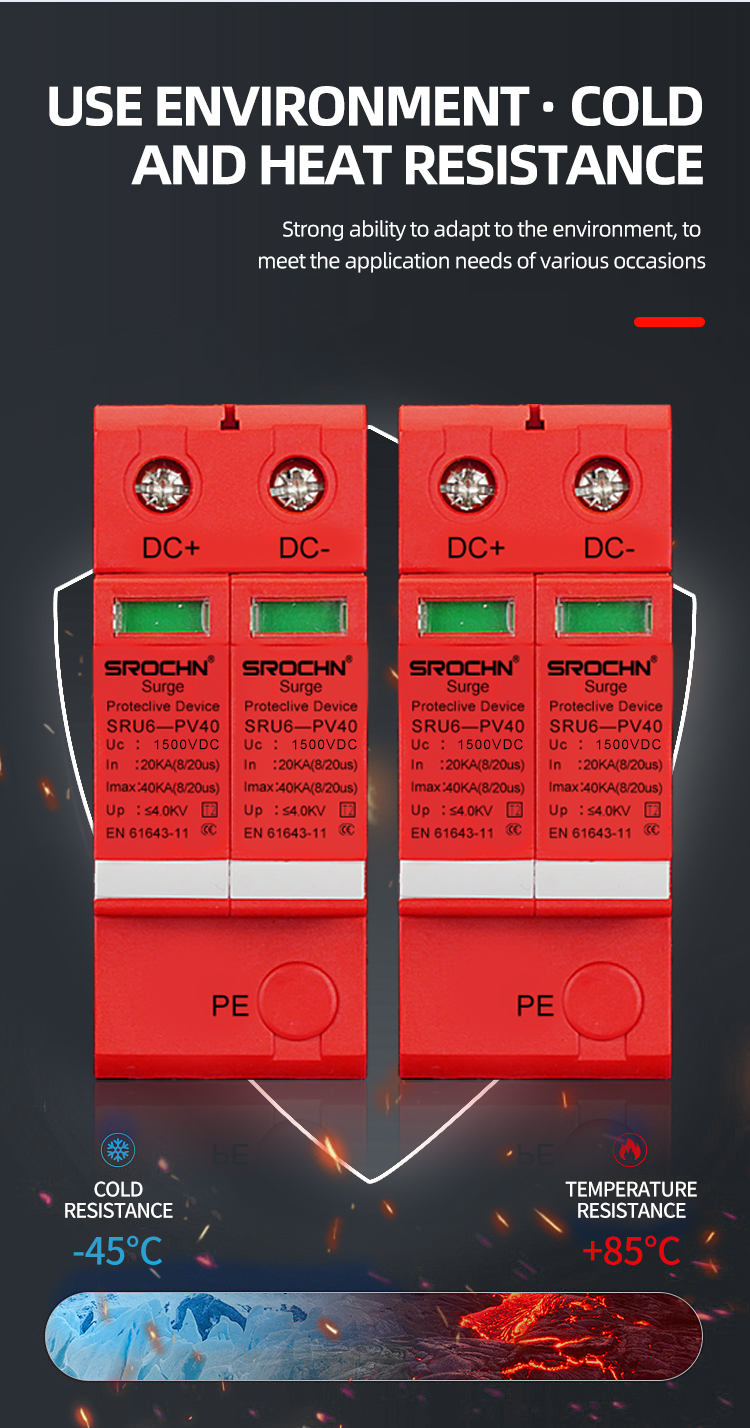

Operating temperature range: -45°C to +85°C
Connection method: Screw terminal

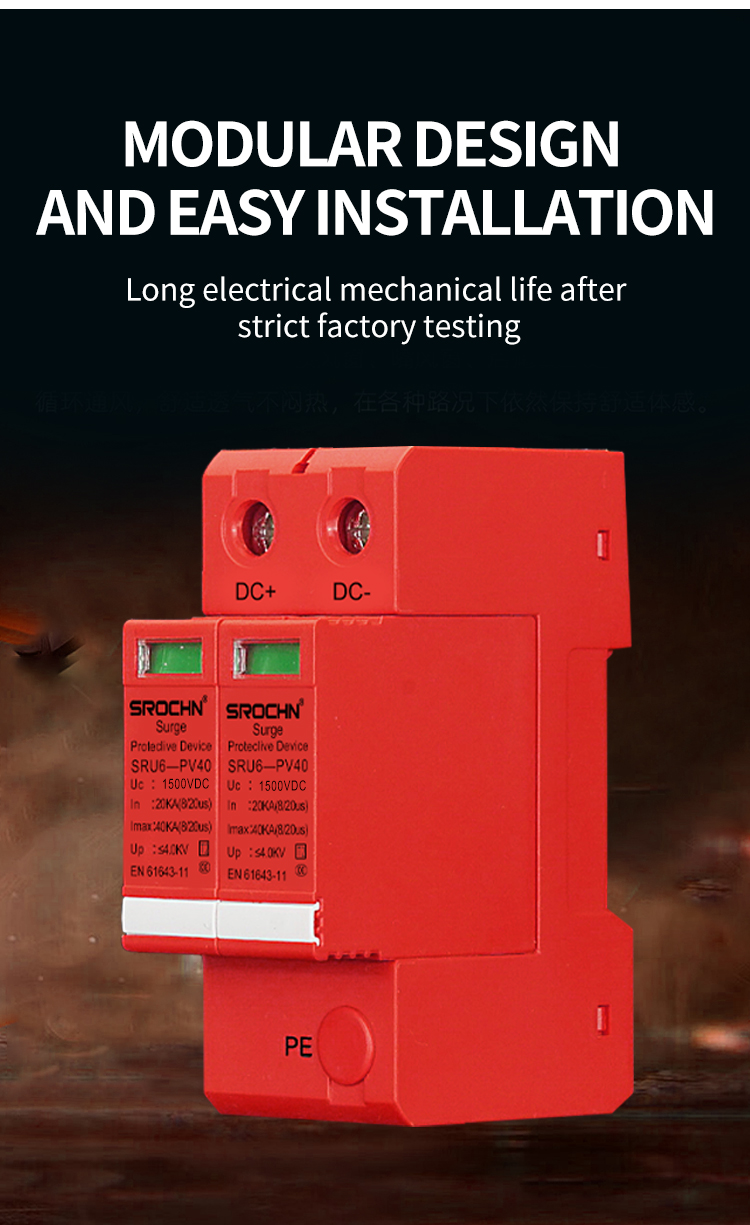

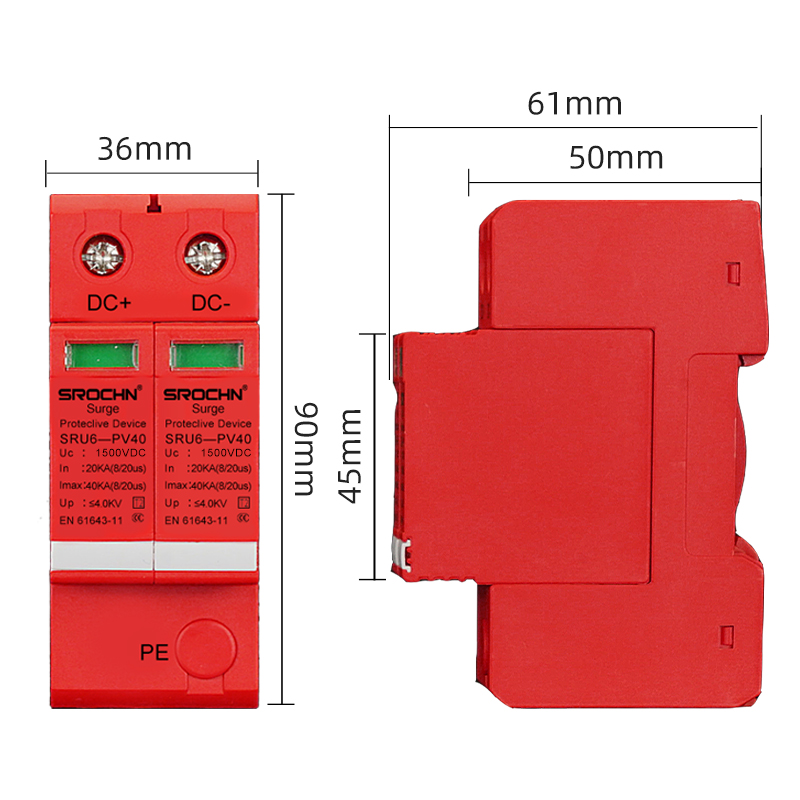

Mounting type: DIN rail (35mm)
Status indication: Visual indicator
Compliance standards: IEC 6164311
Protection degree: IP20
Performance Characteristics
The device maintains consistent surge handling capability while demonstrating stable performance characteristics throughout its service life. The design emphasizes reliability and safety, incorporating features that ensure proper operation under specified environmental and electrical conditions. The product meets relevant international standards for surge protective devices, providing assurance of quality and performance for electrical system protection applications.
