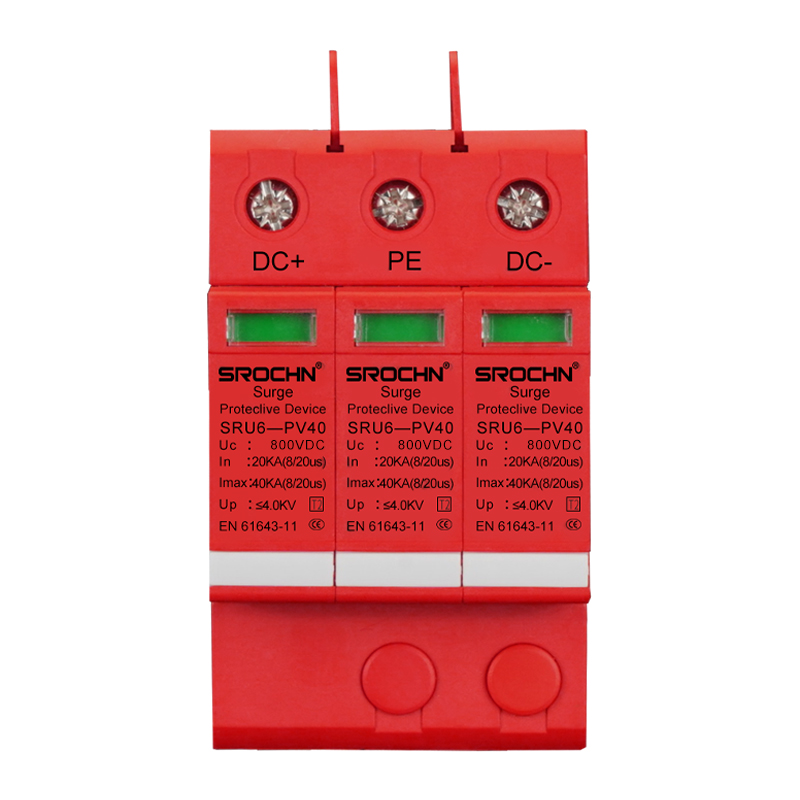

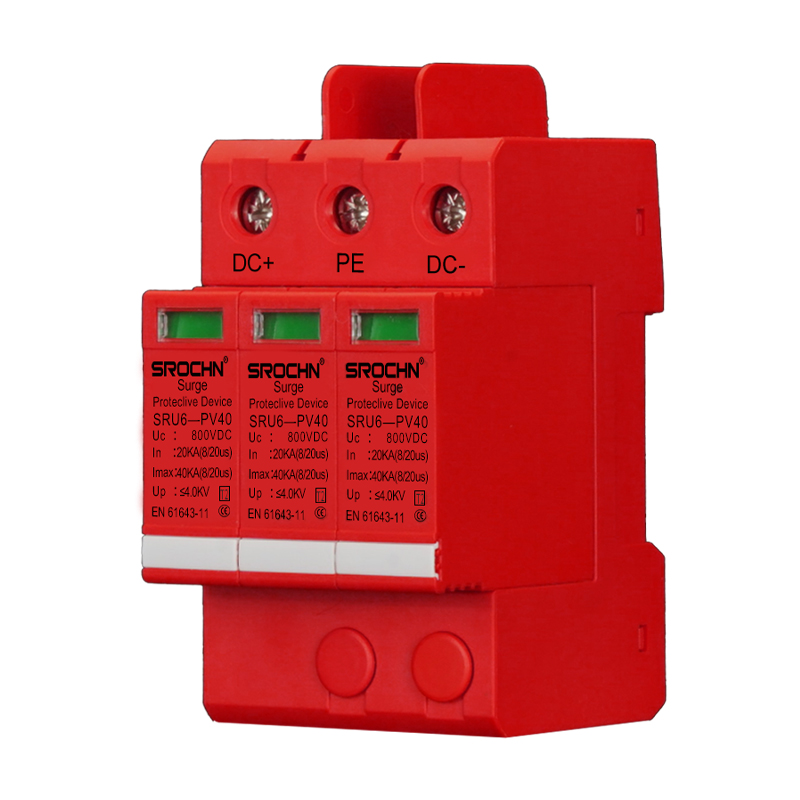

800VDC T2-class surge protector: providing advanced protection for high-voltage DC systems

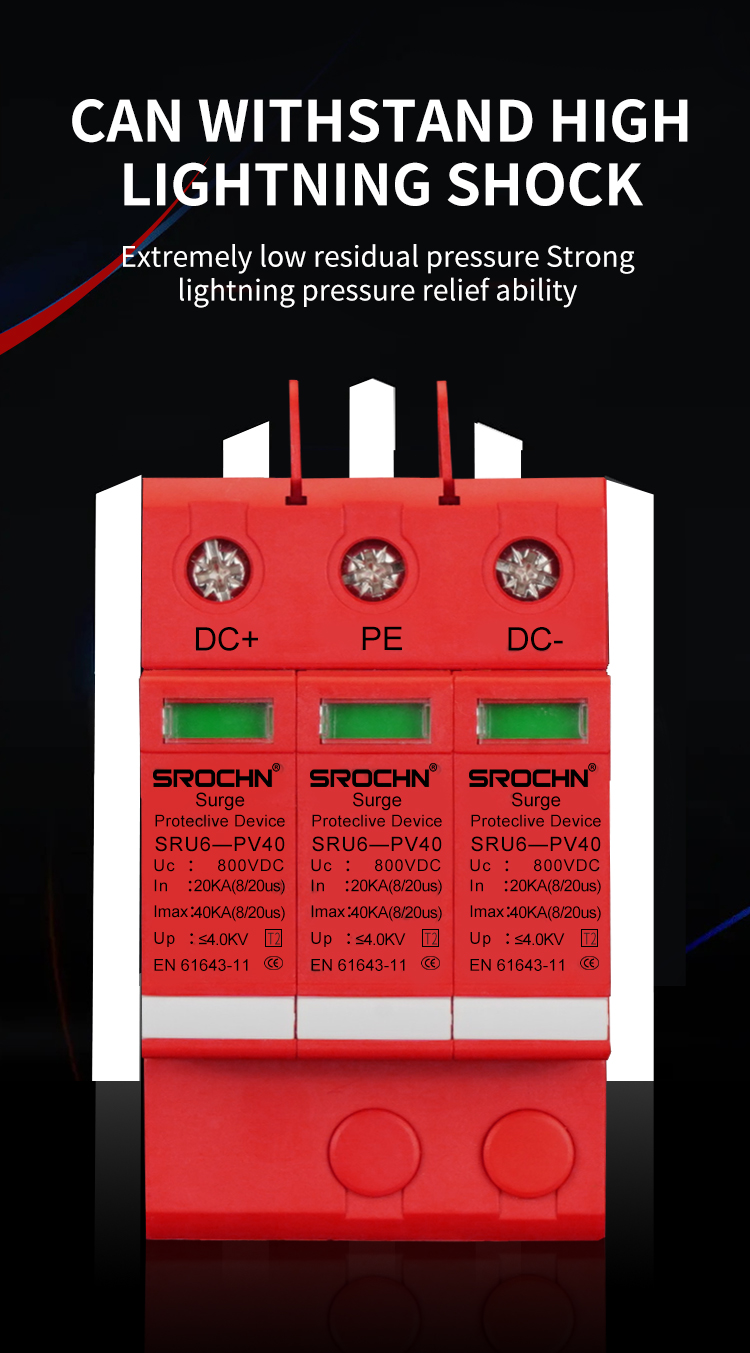

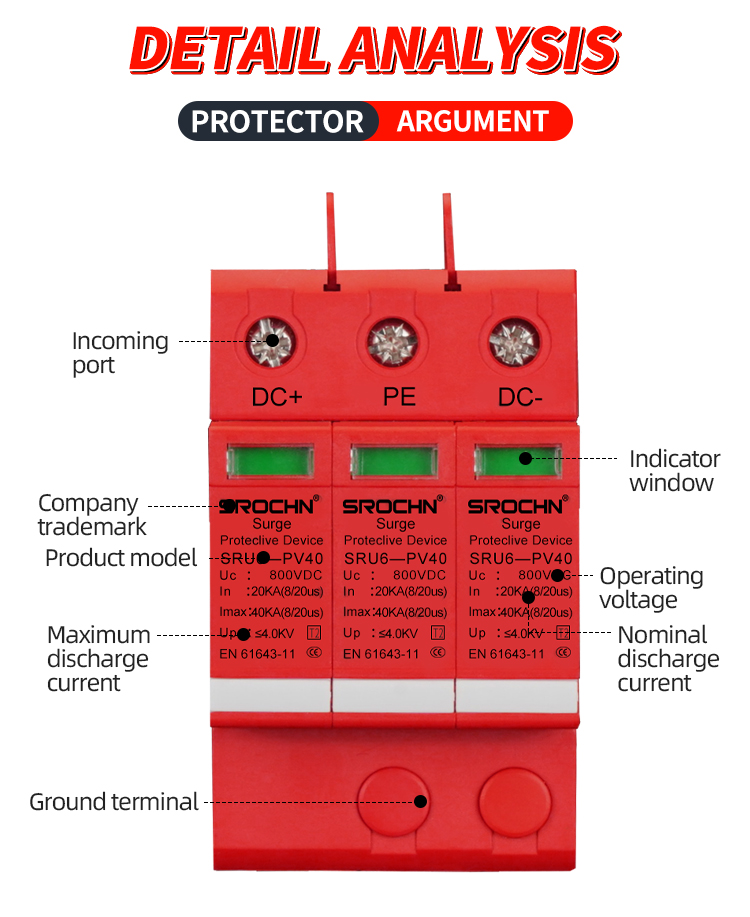

The device's three-pole configuration provides comprehensive protection for the positive, negative, and ground conductors in DC systems, ensuring complete protection against surge events. Its T2 rating meets international standards for handling indirect lightning strikes and switching surges, making it suitable for a wide range of applications. Its 800VDC voltage rating makes it an ideal solution for high-voltage applications in renewable energy systems and industrial environments. A standard discharge current of 20kA ensures consistent performance under normal operating conditions, while a maximum capacity of 40kA provides robust protection against severe electrical transients.

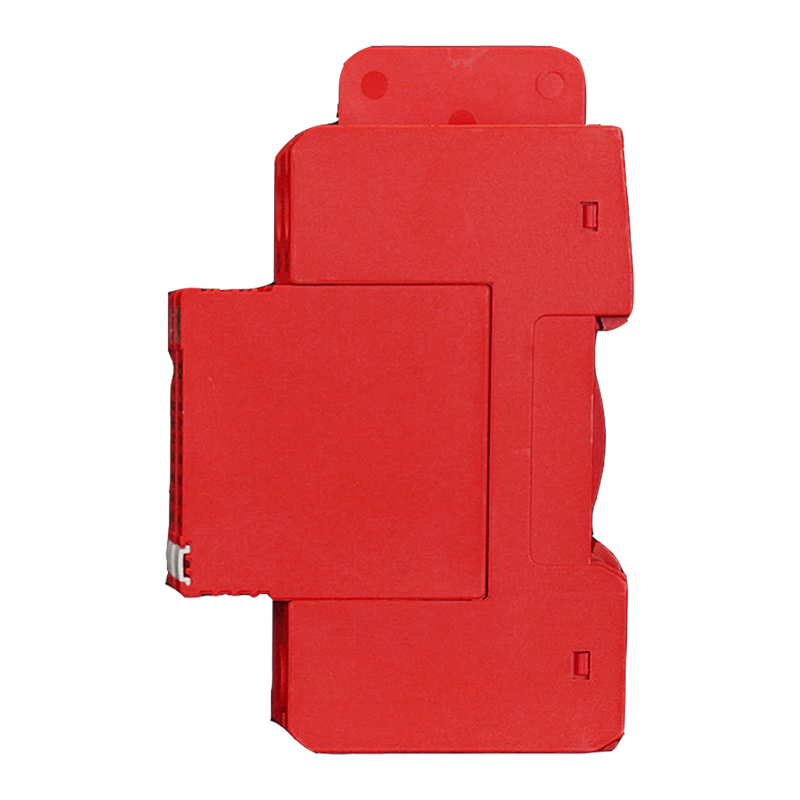

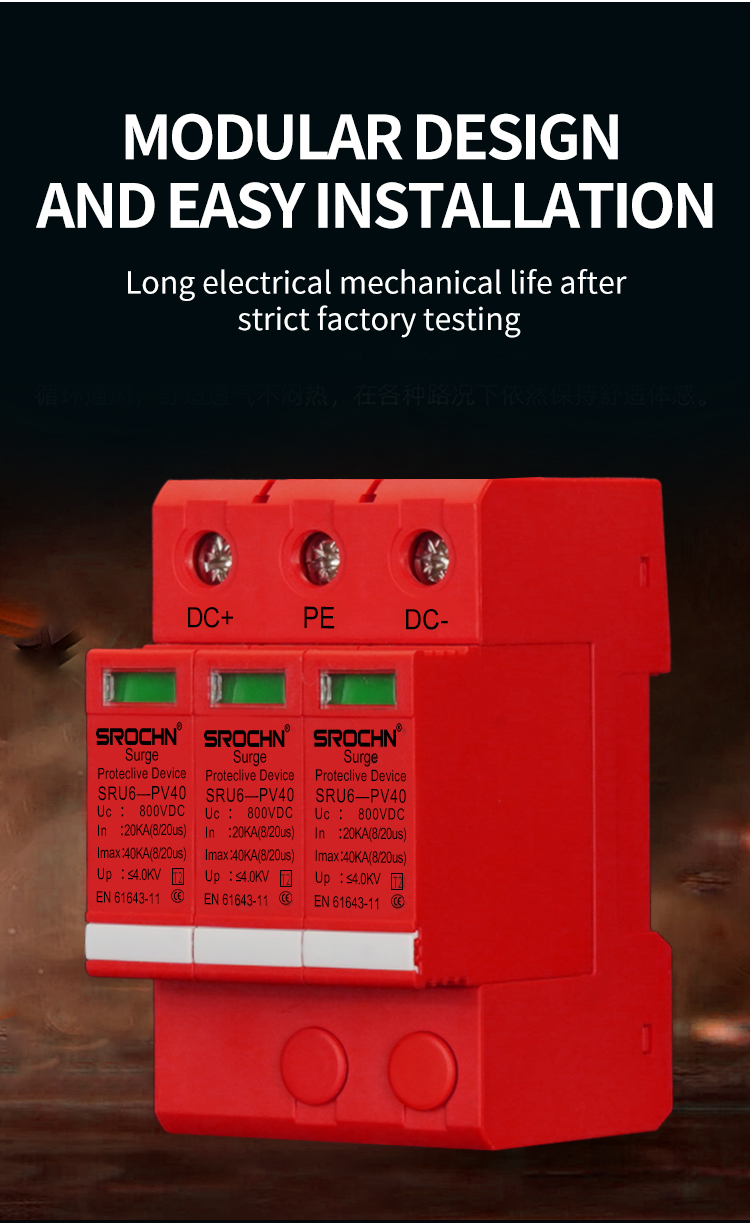

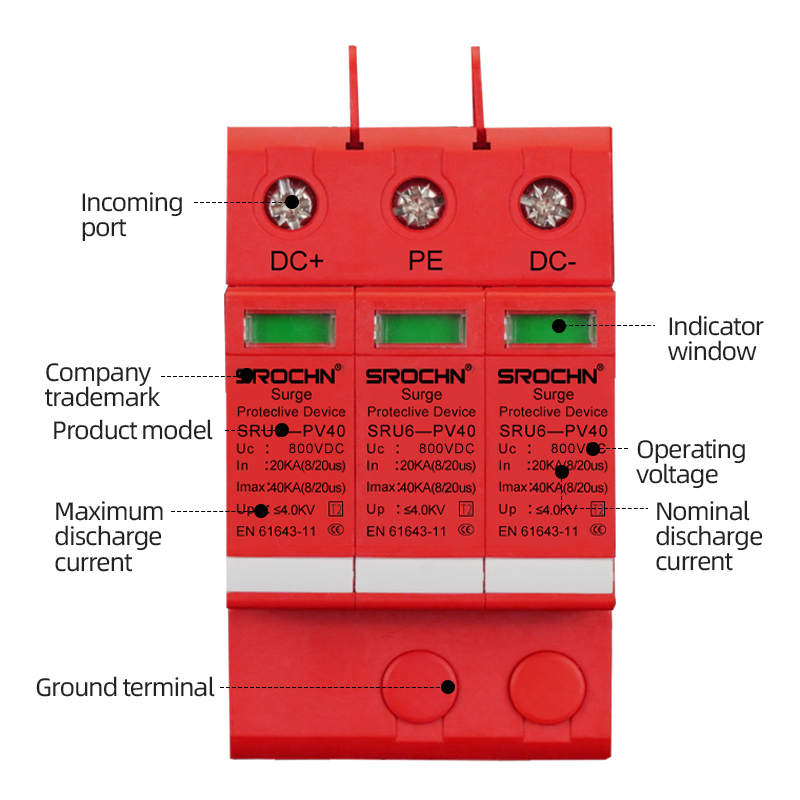

An integrated thermal protection system automatically disconnects the device in the event of overload or end-of-life, enhancing safety. Clear visual status indicators allow for quick assessment of device status, while the DIN rail mount design facilitates easy installation within standard electrical cabinets. Screw terminal connections ensure secure wiring, contributing to long-term device reliability. The red plastic housing provides excellent electrical insulation while being clearly visible and easily identified within switchboards.

This surge protector is primarily used in large-scale photovoltaic systems to protect solar inverters, combiner boxes, and monitoring equipment from lightning surges. Industrial applications include protecting high-voltage motor drives, programmable logic controllers (PLCs), and automation systems in manufacturing environments. The device is also effective in applications requiring high-voltage DC protection, such as electric vehicle charging infrastructure, telecommunications power systems, and data center backup power.

Other applications include railway electrification systems, mining equipment power supplies, and marine electrical systems. The device is suitable for both indoor and outdoor sheltered installations, offering flexibility in various environmental conditions. Building management systems and security systems also benefit from the reliable surge protection it provides, ensuring the continued operation of critical systems.

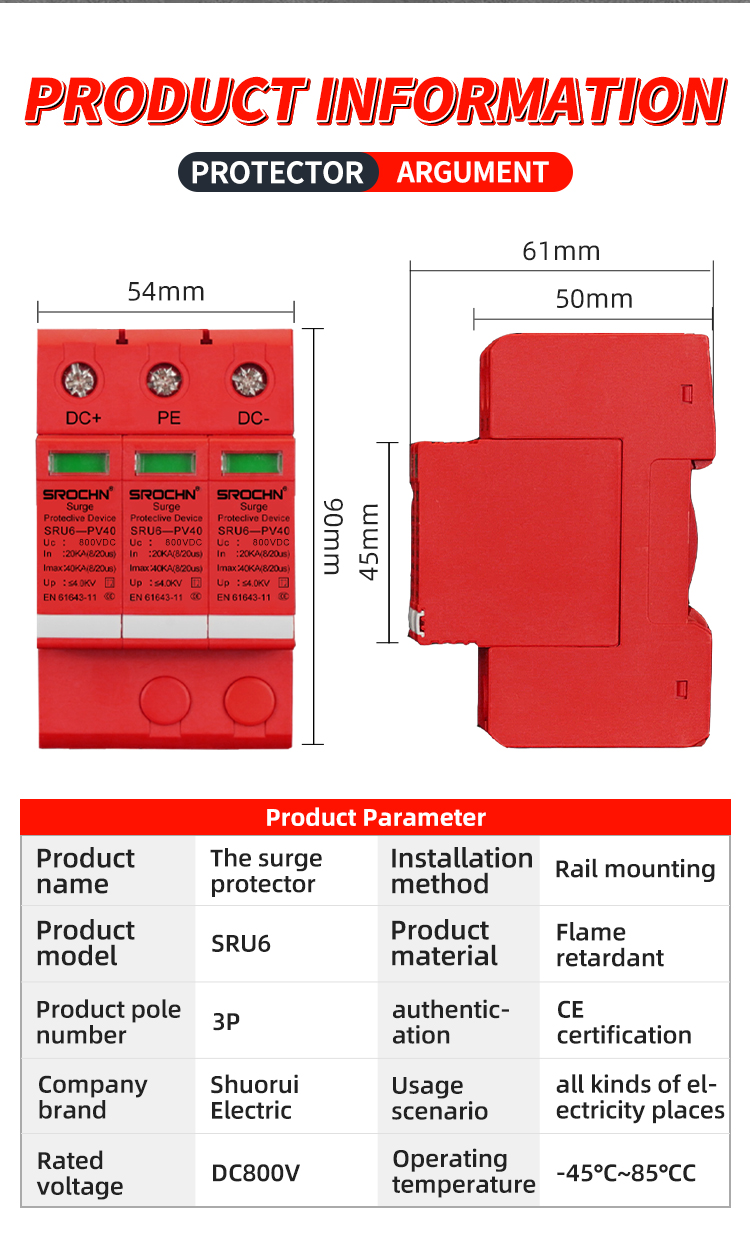

Maximum discharge current: 40kA (8/20μs)

Standard discharge current: 20kA (8/20μs)

Type classification: T2 (Class II)

 Protection Level: ≤4.0kV

Rated voltage: 800VDC

Housing material: High-grade plastic

Product color: red

Protection mode: line-to-line and line-to-ground

Response time: <25 nanoseconds

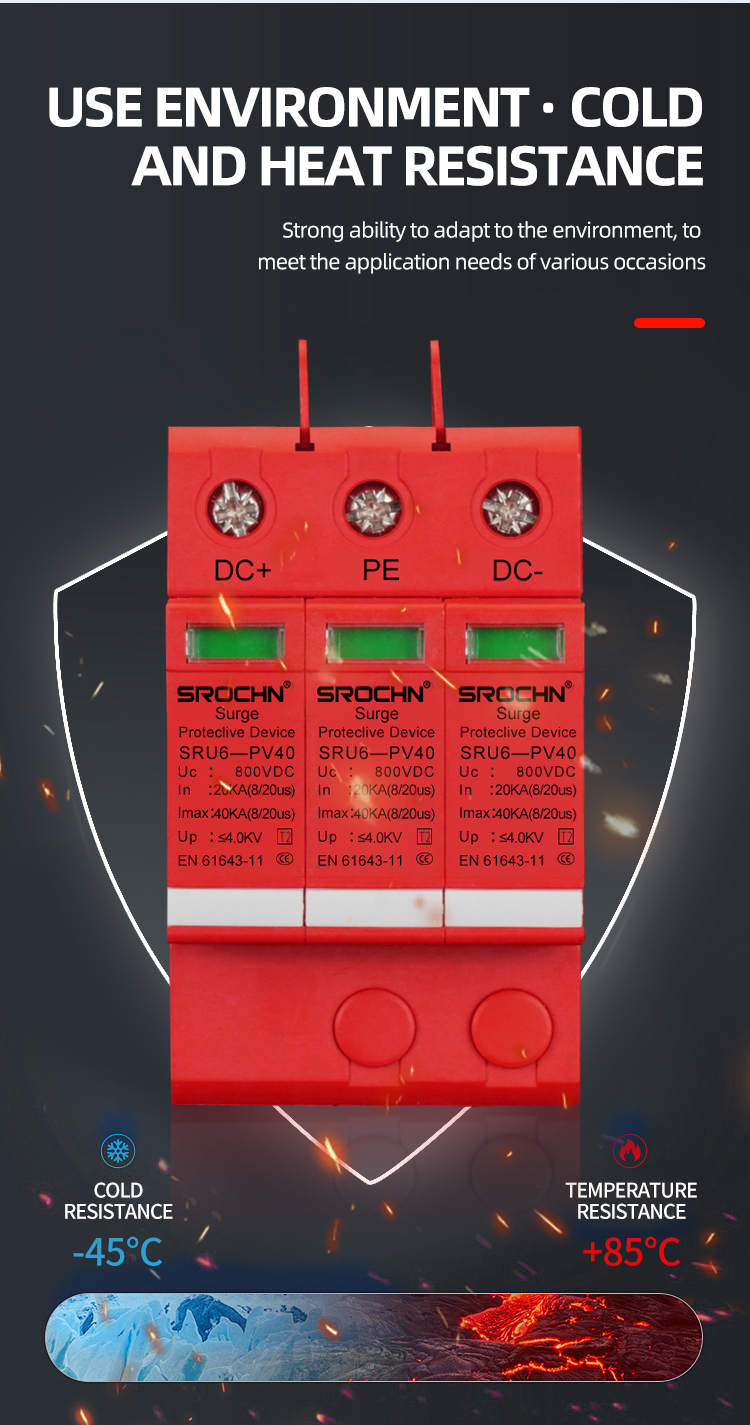

Operating temperature range: -45°C to +85°C

Connection method: screw terminal

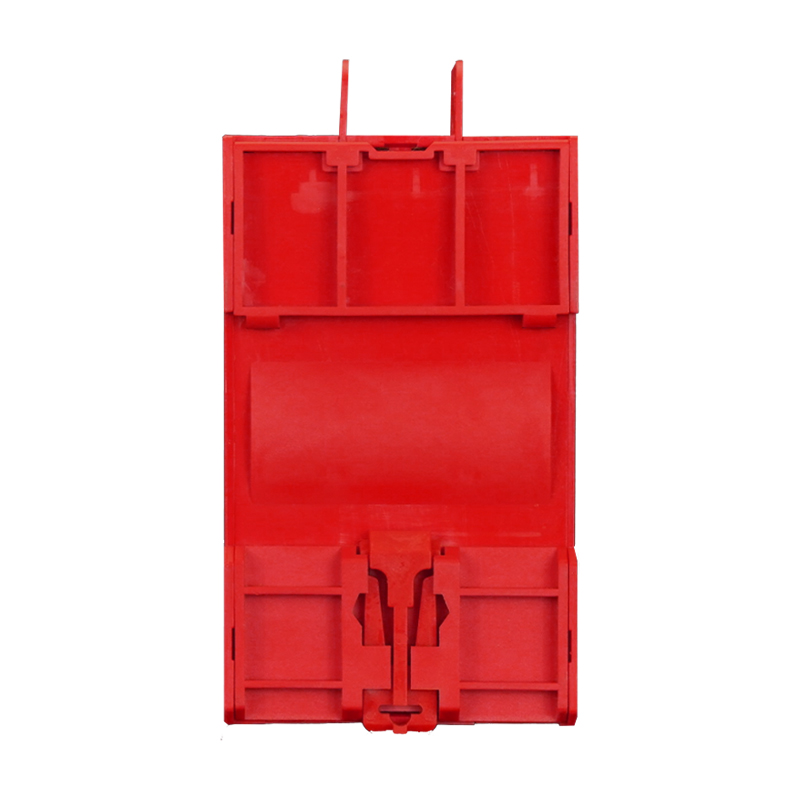

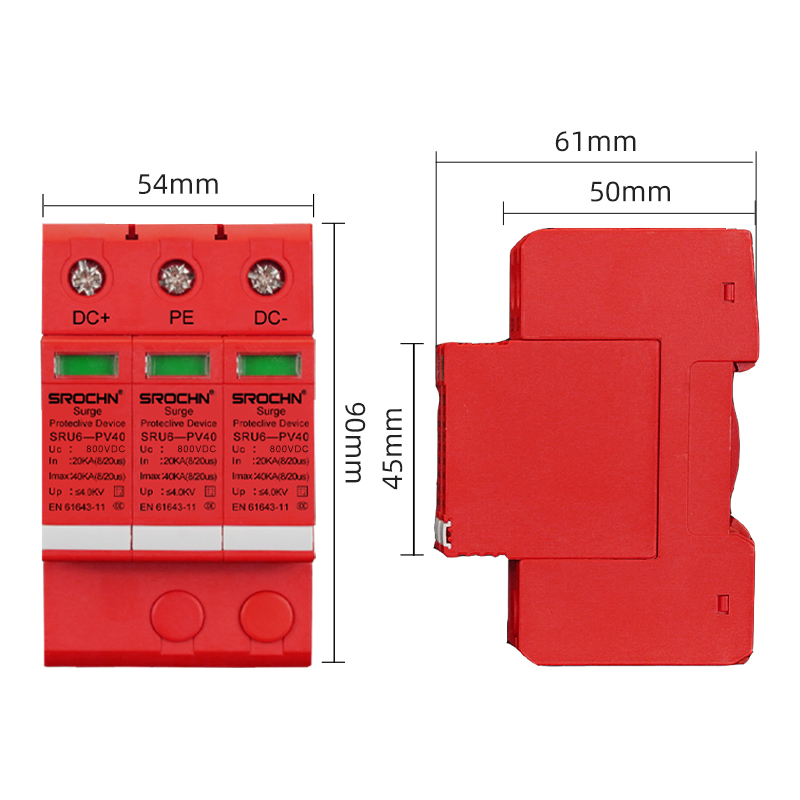

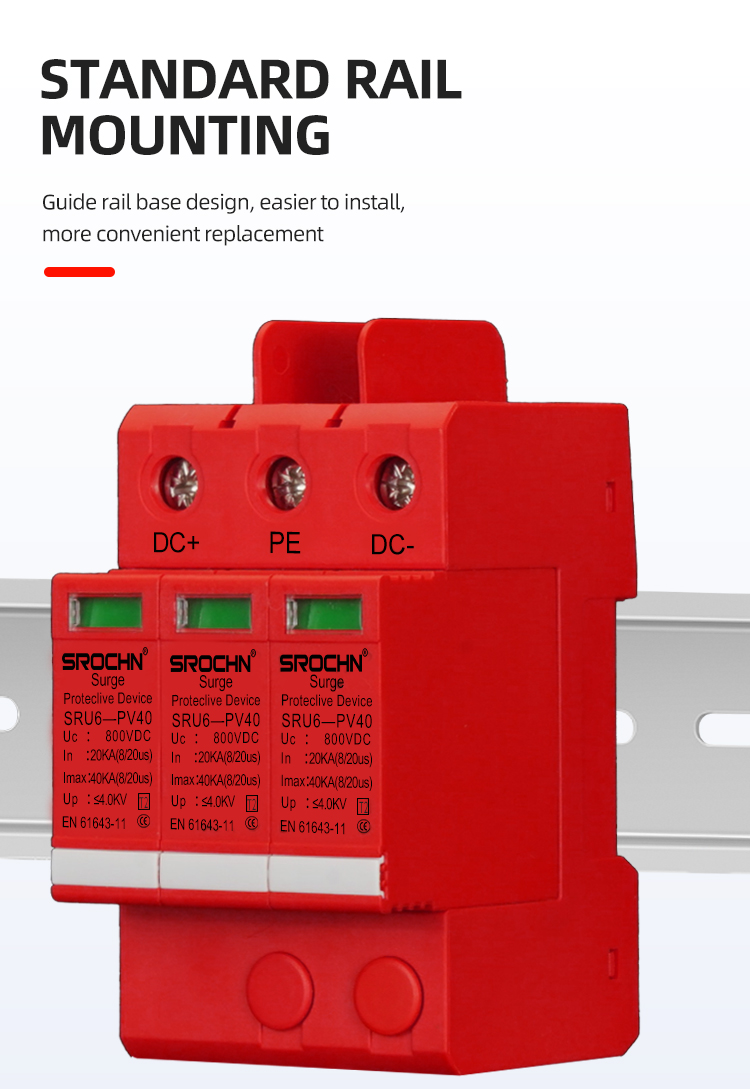

Mounting type: DIN rail (35mm standard)

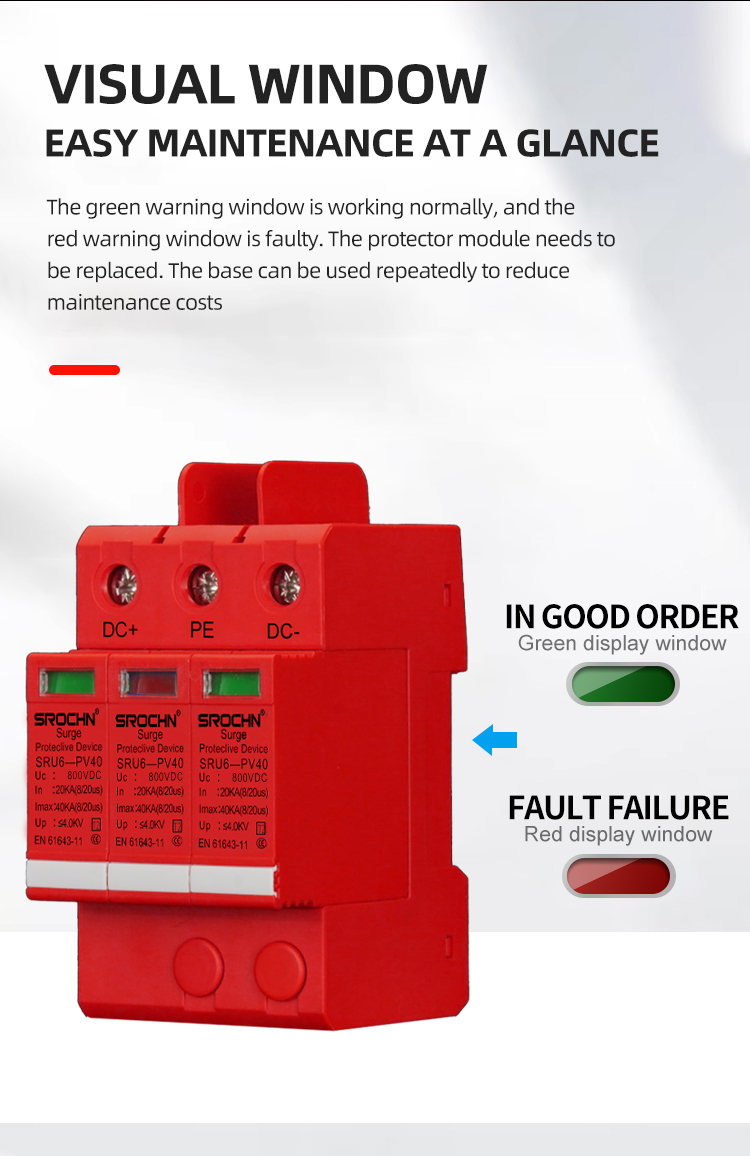

Status indication: Visual indicator

Compliant standards: IEC 6164311

Protection level: IP20

Performance characteristics

This device maintains stable performance characteristics throughout its service life, providing consistent surge protection under a wide range of operating conditions. Designed with reliability and safety in mind, it integrates features to ensure the proper operation of high-voltage DC systems. This product complies with all relevant international standards for surge protection devices, ensuring quality and performance for electrical system protection applications. Its compact design allows for efficient use of control cabinet space, while its robust construction ensures durability in harsh environments. The combination of superior technology and practical design features makes this surge protection device an excellent choice for protecting 800VDC electrical systems from transient overvoltages.
