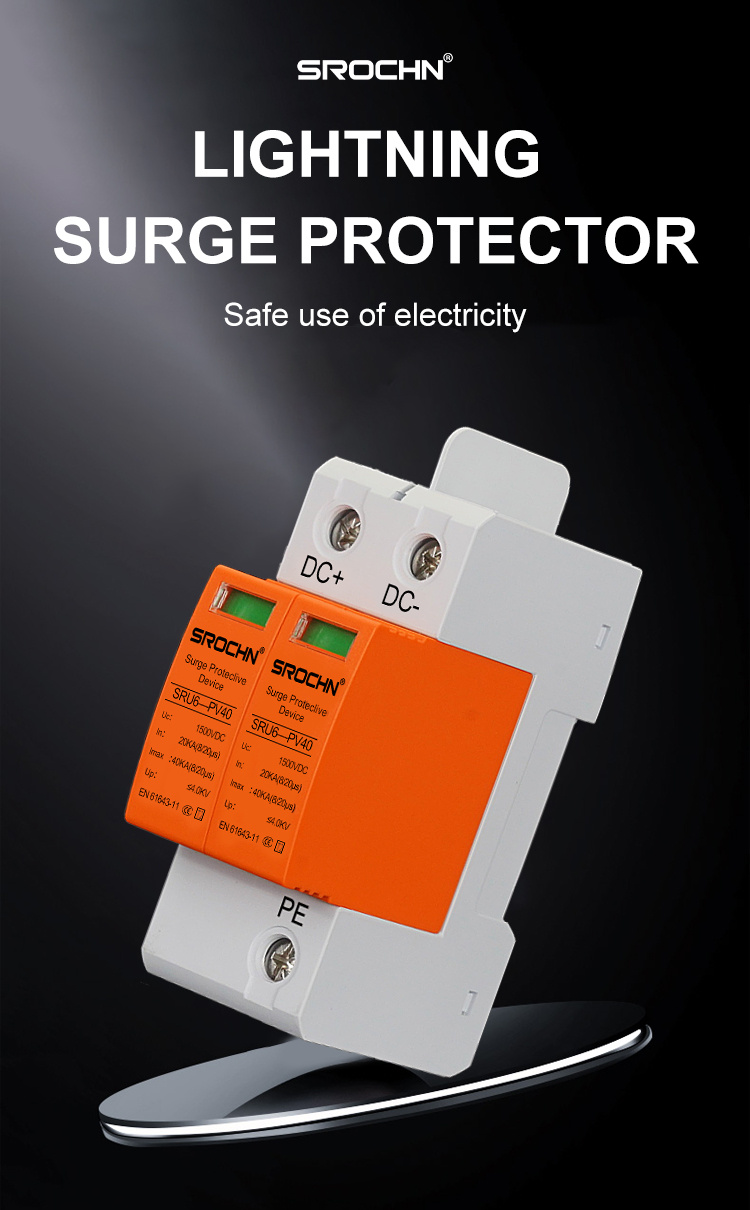

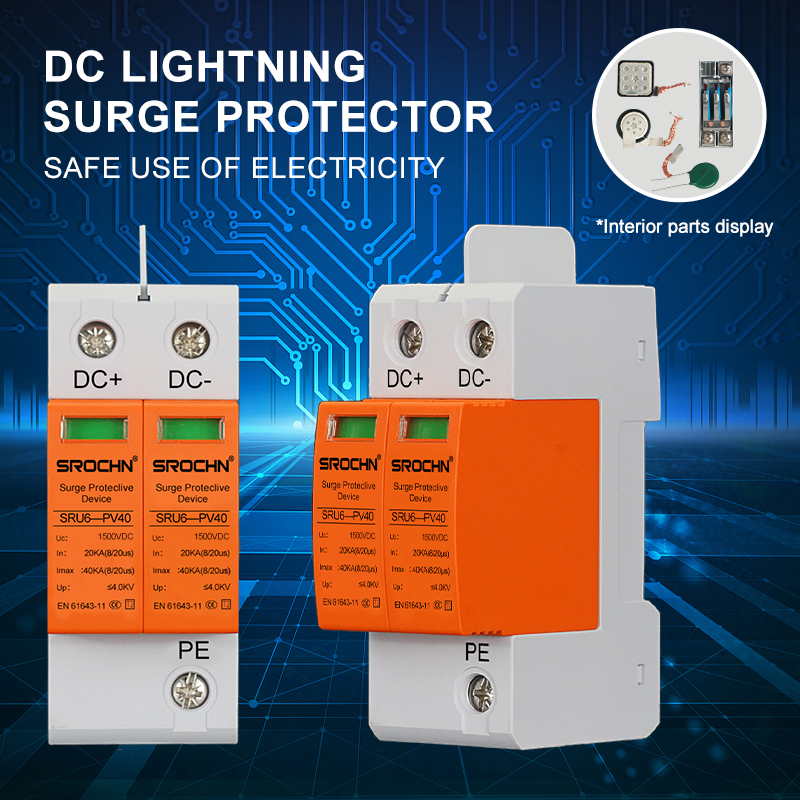

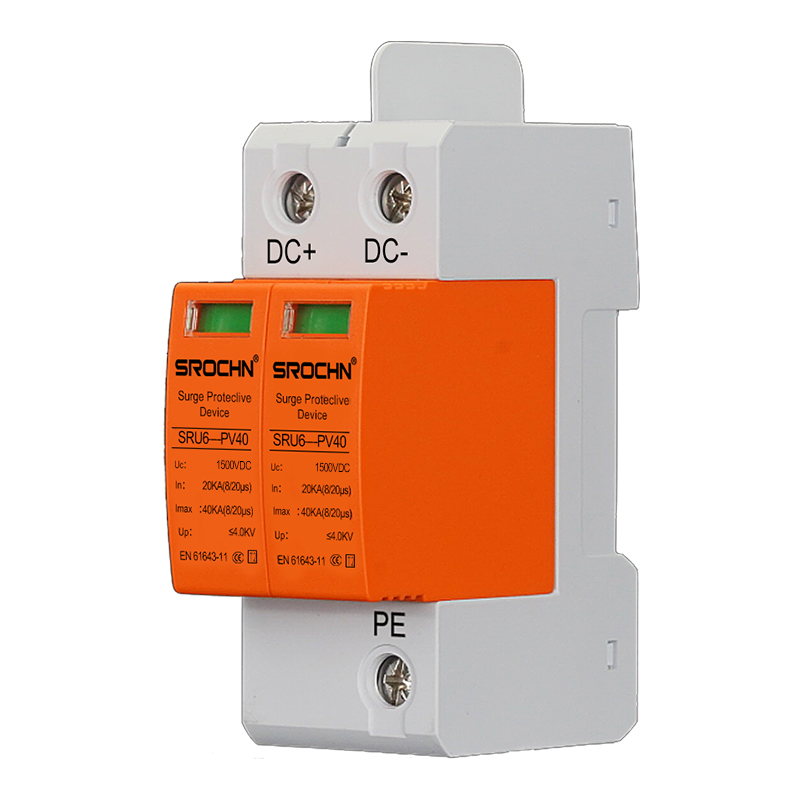

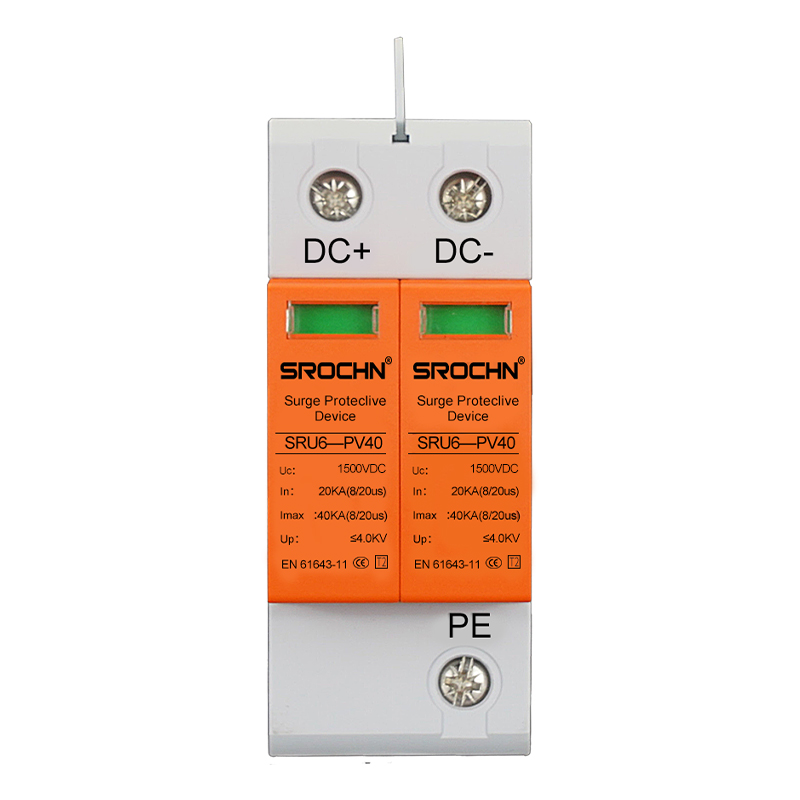

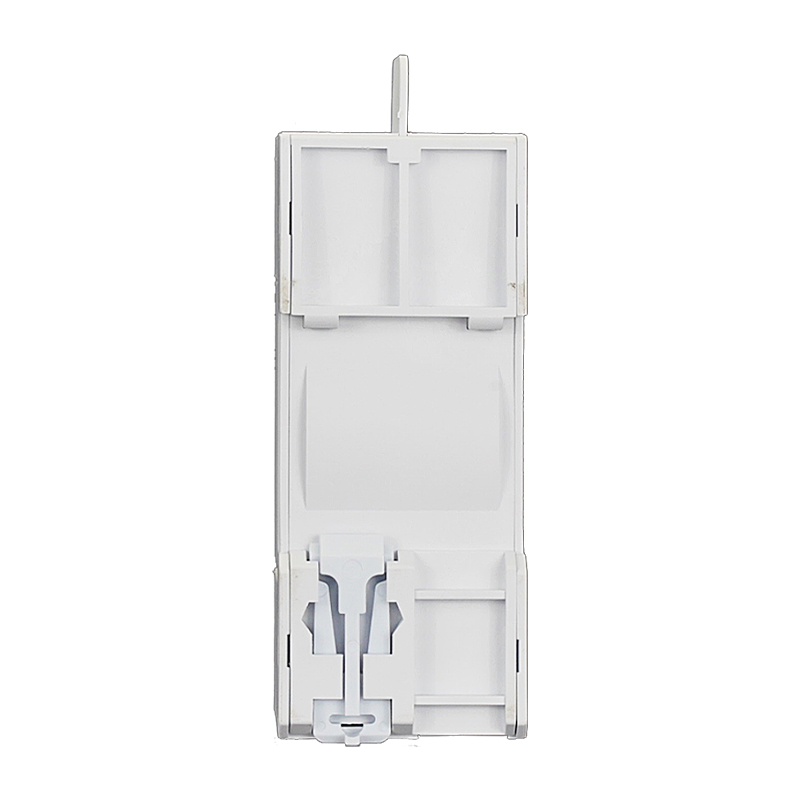

IndustrialGrade 2P 1500VDC T2 Surge Protective Device with 40kA Surge Capacity
Key Features and Advantages
• Ultrahigh voltage DC protection specifically engineered for 1500VDC systems
• Enhanced surge handling capability with 40kA maximum discharge current
• Rapid response characteristics with sub25 nanosecond reaction time
• Comprehensive thermal management with automatic disconnection mechanism
• Clear visual status indication for operational monitoring

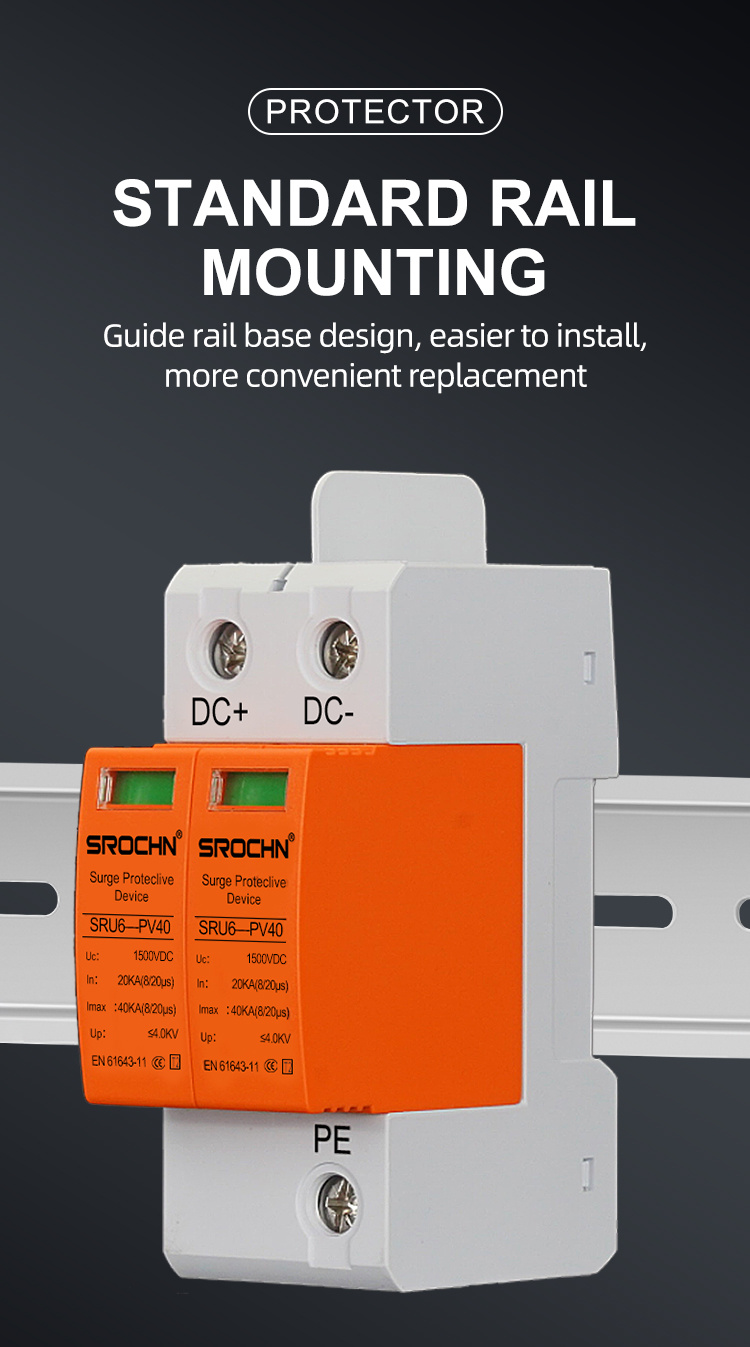

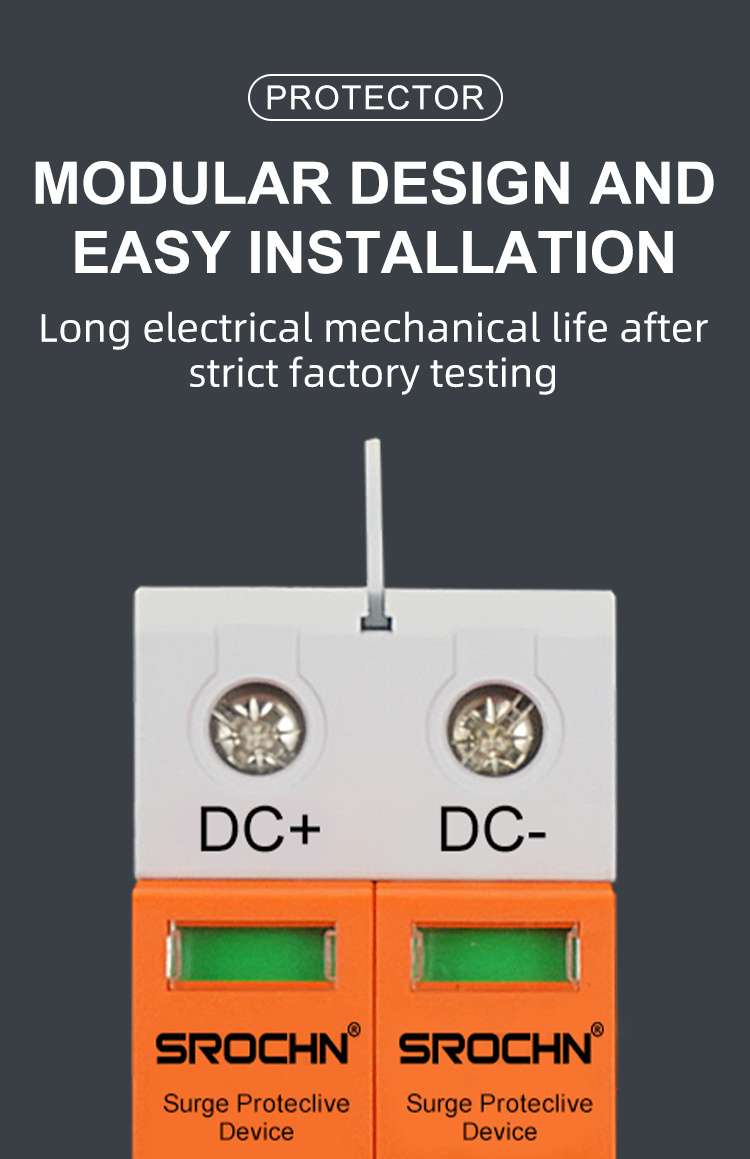

• Simplified installation through DIN rail mounting system
• Wide operational temperature range from - 45°C to +85°C
• Full compliance with IEC 6164311 international standards
Application Environments
The device is suitable for deployment in various critical applications including:
1. Industrial power distribution and control systems
2. Renewable energy generation and storage facilities
3. Electric vehicle fastcharging infrastructure
4. Railway and transportation power networks
5. Telecommunications equipment and data centers
6. Energy storage and battery management systems
7. Critical infrastructure protection applications

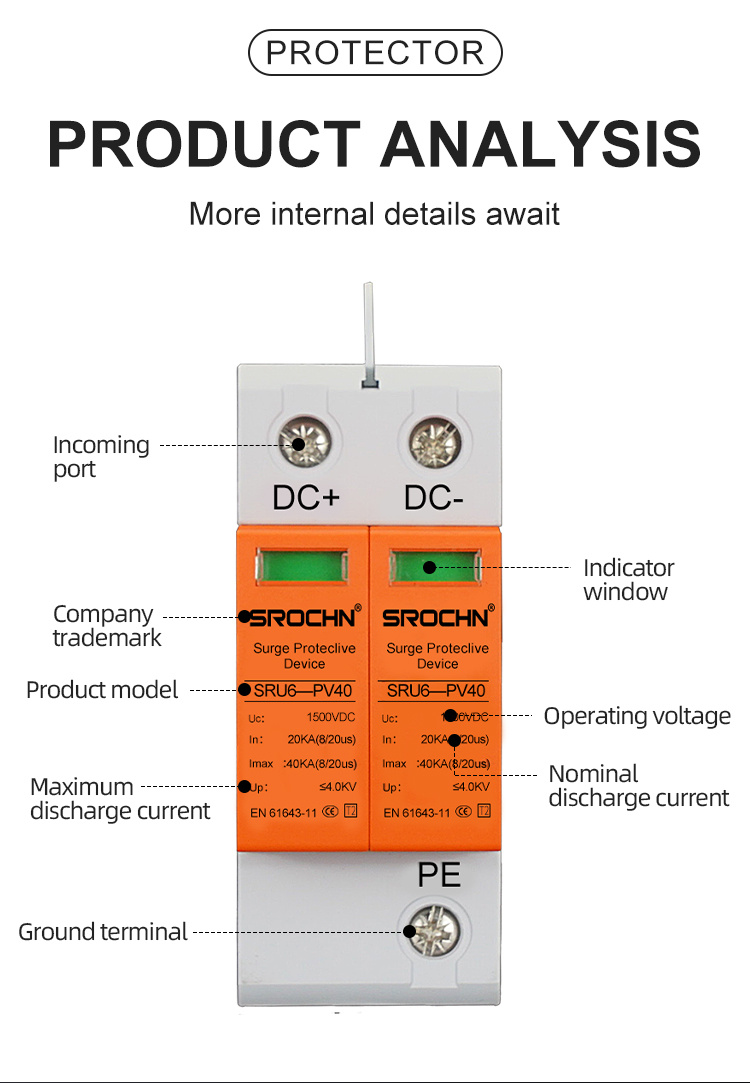

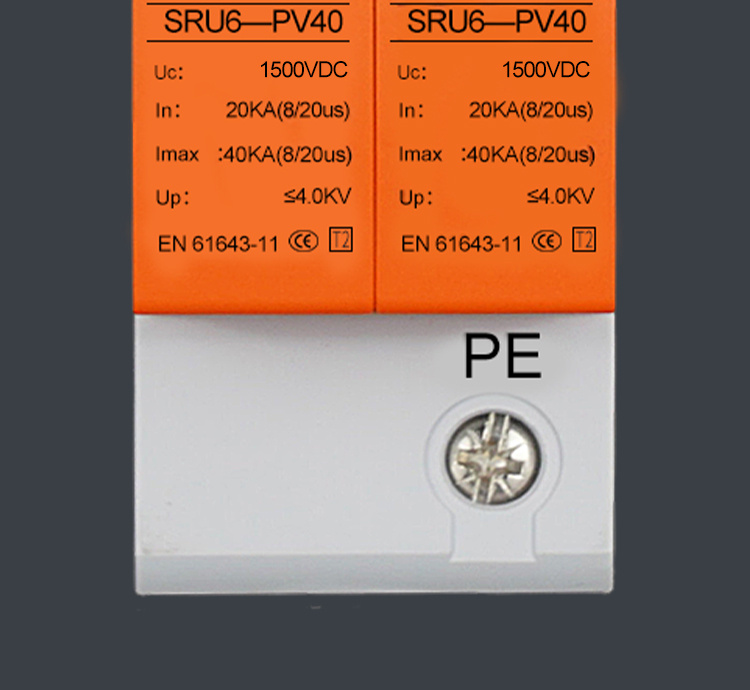

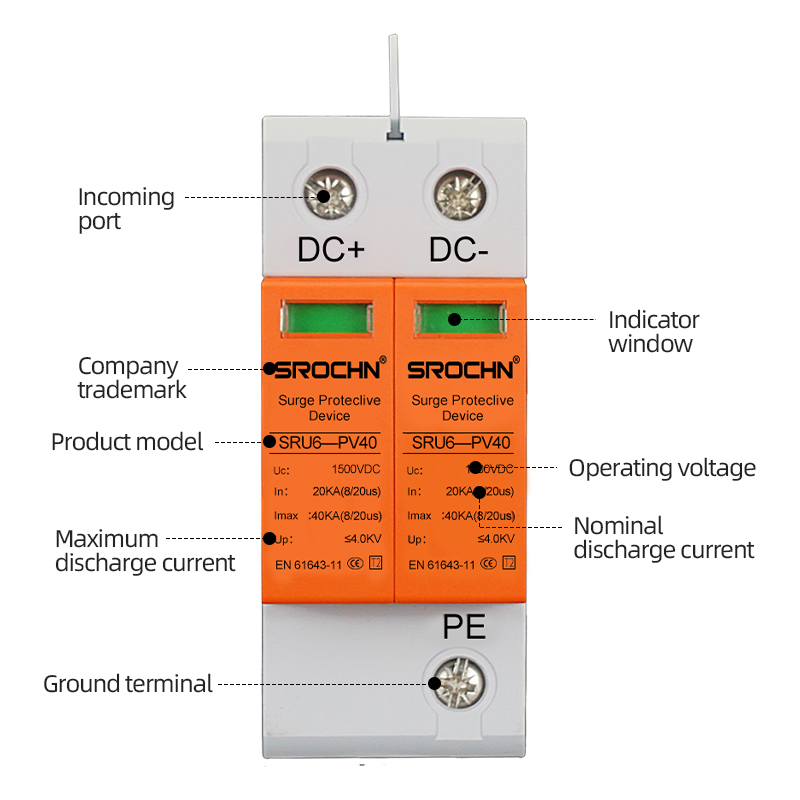

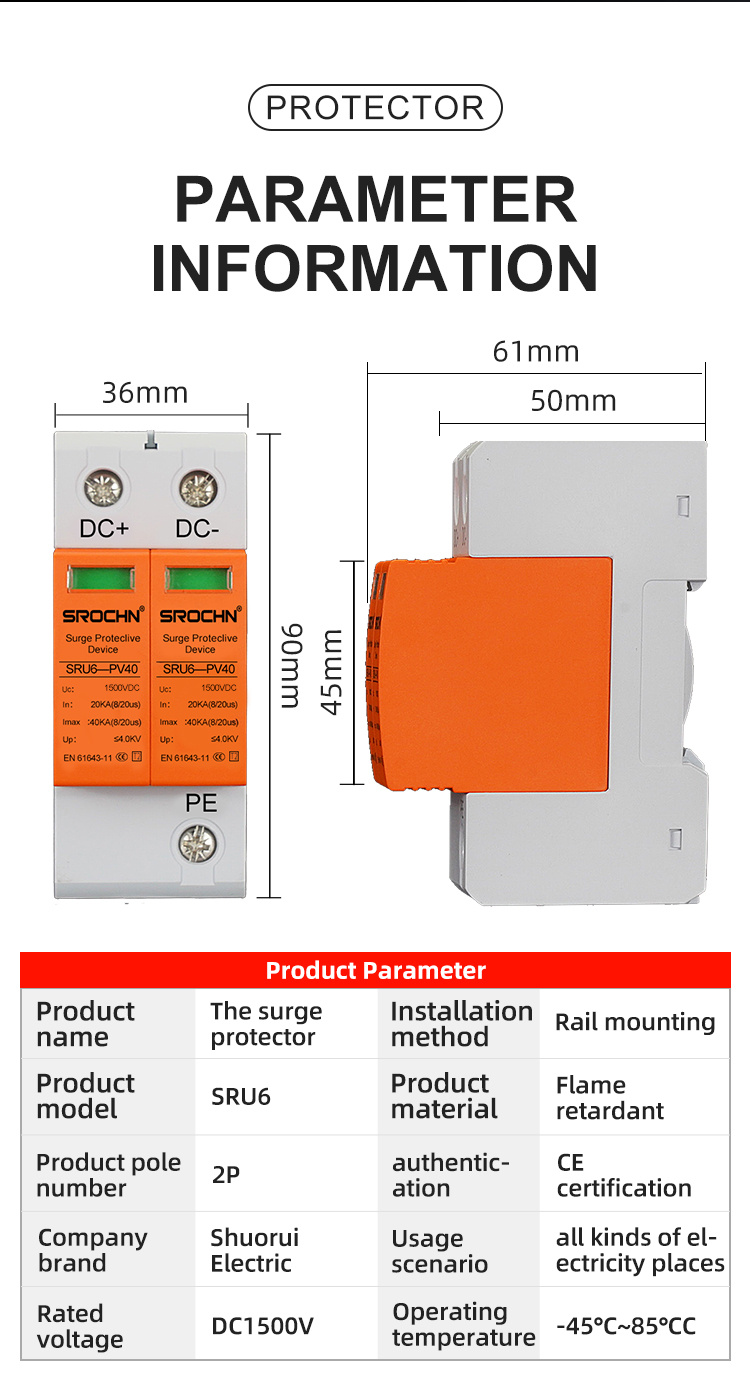

Technical Specifications
Maximum Discharge Current: 40kA (8/20μs)
Nominal Discharge Current: 20kA (8/20μs)
Rated Voltage: 1500VDC
Protection Level: ≤4.0kV
Protection Level: T2 (Class II)
Number of Poles: 2P

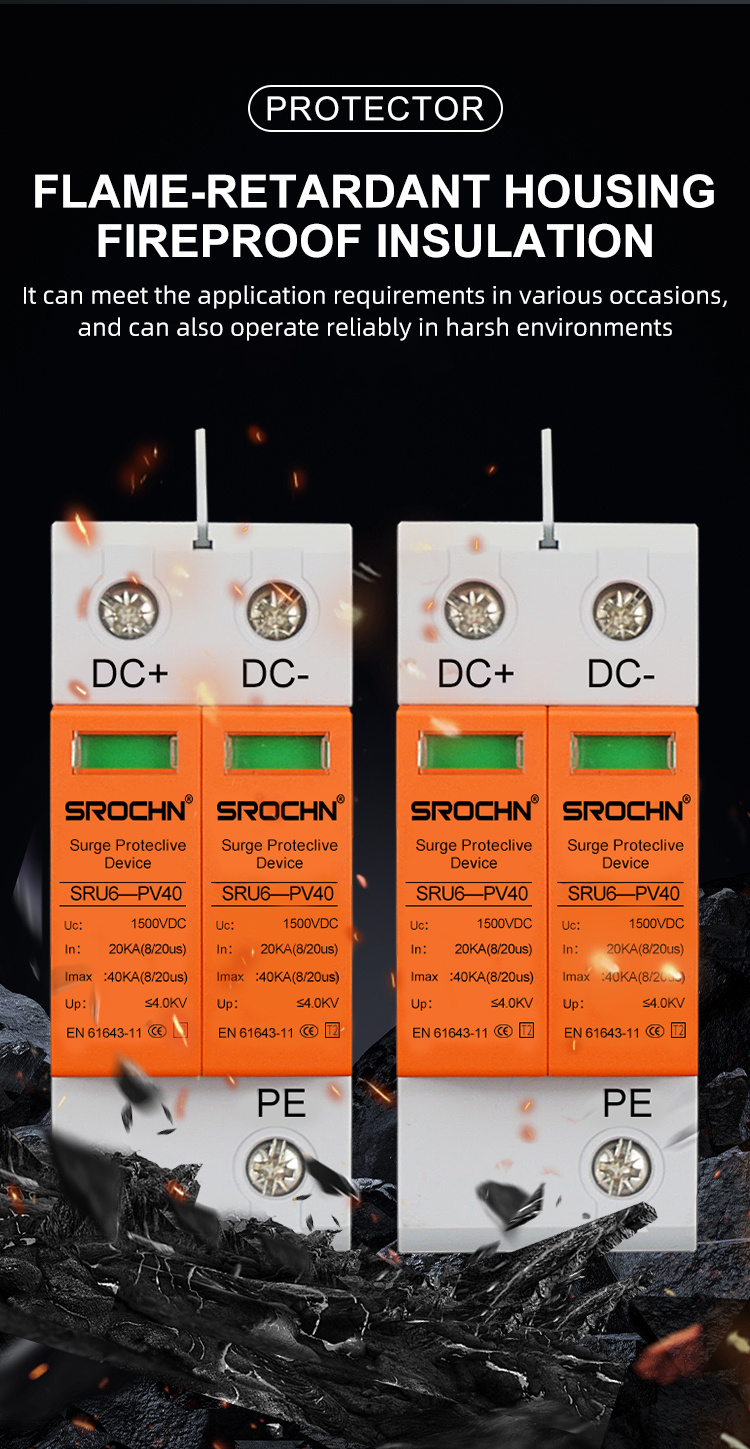

Housing Material: FlameRetardant Plastic (UL94 V0)
Response Time: <25 nanoseconds
Operating Temperature Range: - 45°C to +85°C
Protection Mode: L+/L/PE
Connection Type: Screw terminal
Mounting: 35mm DIN rail
Protection Rating: IP20
Compliance Standards: IEC 6164311, EN 6164311
This surge protective device delivers reliable performance and comprehensive protection for ultrahigh voltage DC systems. Its robust construction and advanced technical features ensure equipment safety and system reliability across various industrial applications. The device meets international standards for surge protective devices and provides effective protection against electrical surges and transient overvoltages in demanding operational environments.
