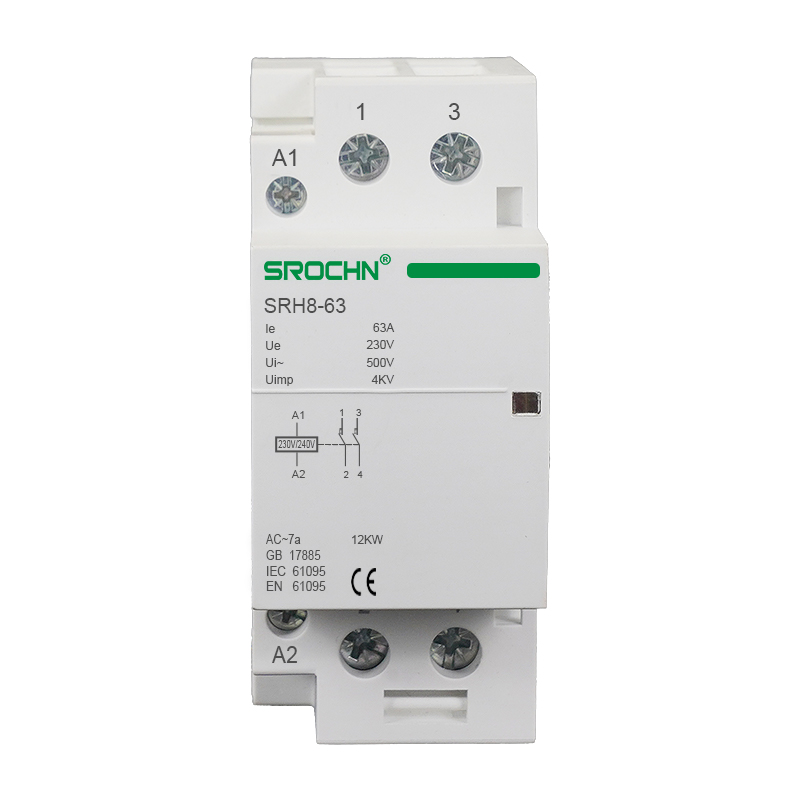

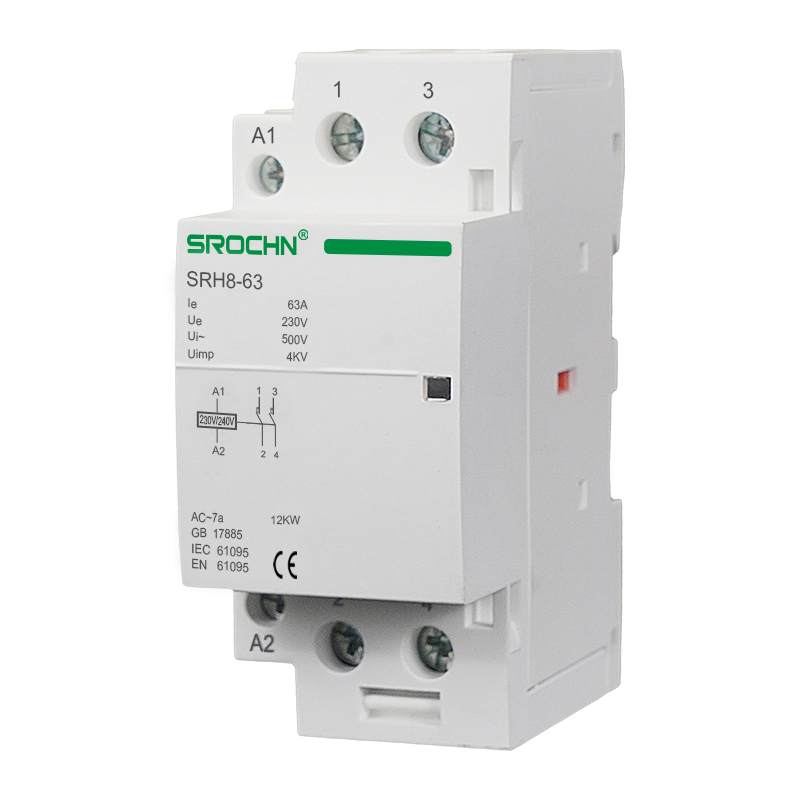

Micro Contactor Rail-Mounted 2P63A4 Normally Open Modular AC Contactor
Application scenarios
Household electrical system: It is used to control the circuit on and off of household appliances such as electric water heaters, air conditioners, and high-power lighting equipment, achieving convenient control and protection of these appliances.
In commercial Settings such as shopping malls and supermarkets, it can be used to control lighting systems, electric roller shutters, small ventilation equipment, etc., facilitating centralized control and management.
Small industrial equipment: For some small machine tools, power tools, auxiliary equipment of automated production lines, etc., AC contactors can control the start, stop, forward and reverse rotation of motors, ensuring the normal operation of the equipment.
Product features
Electromagnetic control: Through the electromagnetic system, when the coil is energized, an electromagnetic force is generated, attracting the armature to act, thereby achieving the closing of the contacts and connecting the circuit. When the coil is de-energized, the electromagnetic force disappears, the armature returns to its original position under the action of the spring, the contacts open, and the circuit is cut off, thereby controlling the on and off of the circuit.
Low voltage release protection: When the circuit voltage drops to a certain extent (usually below 70% - 85% of the rated voltage), the contactor will automatically release and cut off the circuit, preventing equipment damage or abnormal operation caused by low voltage and providing protection for the load equipment.
High operating frequency: It can meet the demands of frequent operations and is widely used in industrial automation control, motor control and other scenarios where equipment needs to be frequently started and stopped.

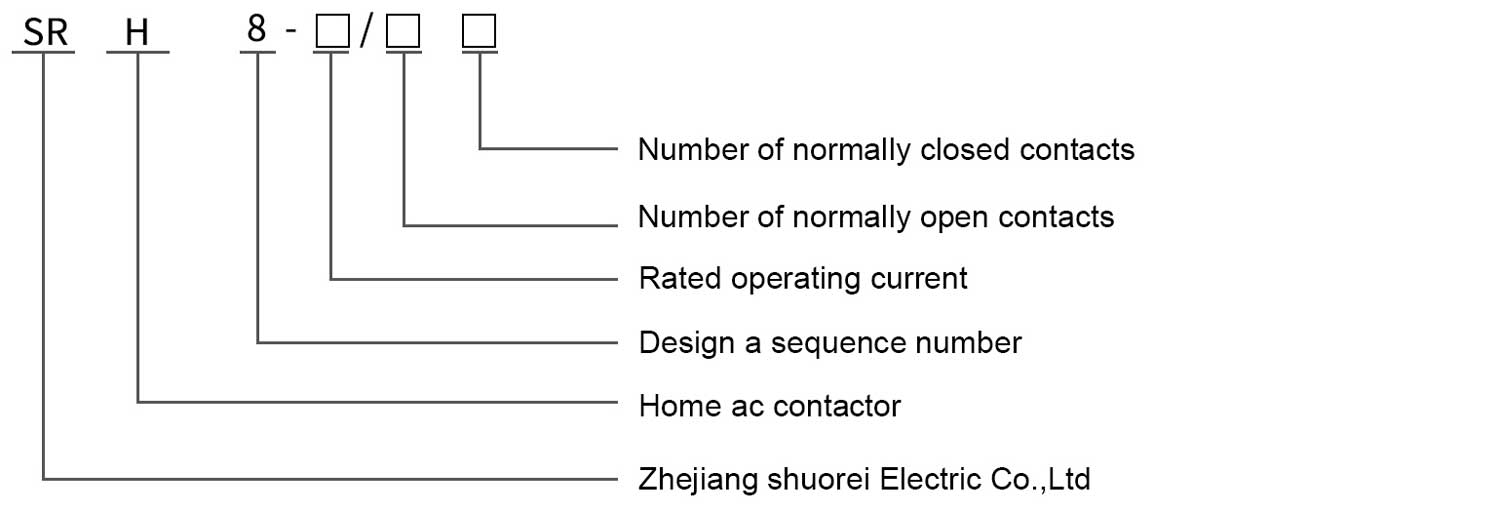

Type Instruction
Parameter Information
| Product name | household AC contactors | Rated current | 63A |
| Product model | SRH8-63 | Rated control power | 12kw |
| Product pole number | 2P | Usage category | AC - 7a |
| Rated insulation voltage | 500V | Rated operating voltage | 230V |

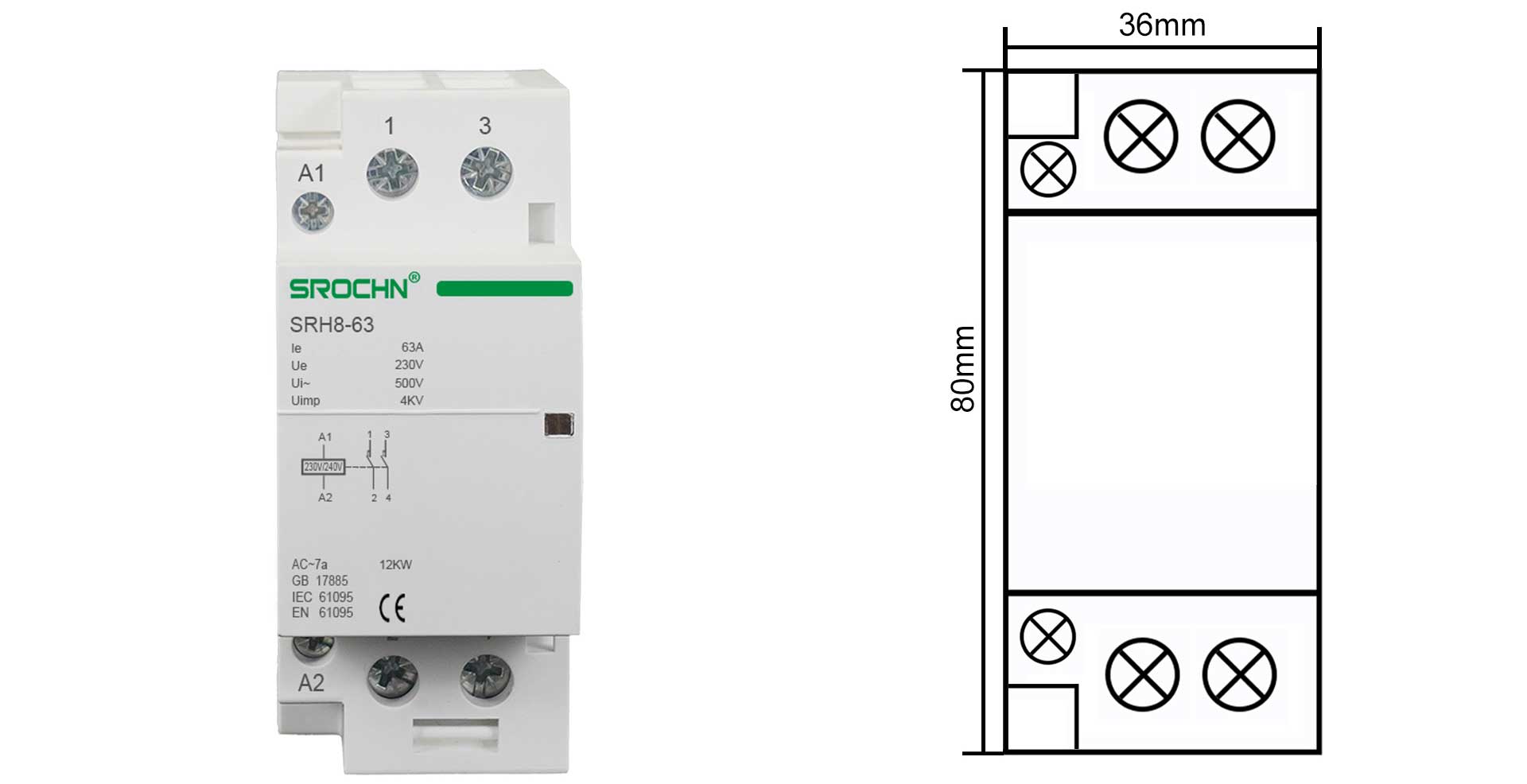

Product Size
