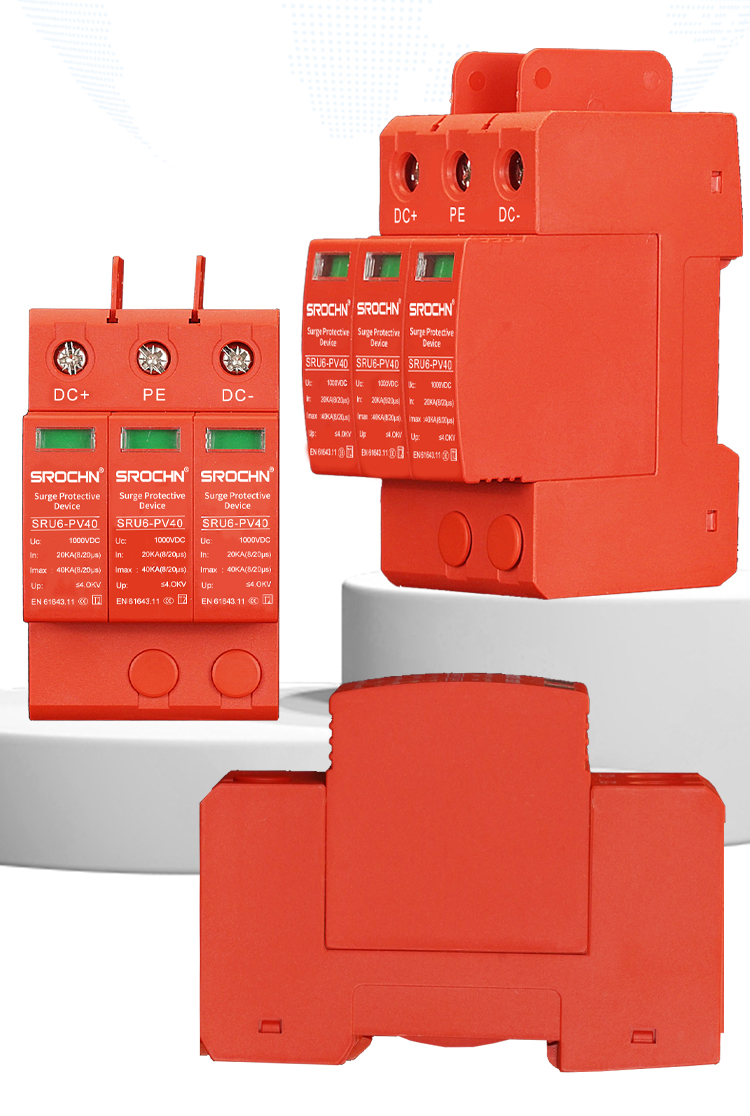

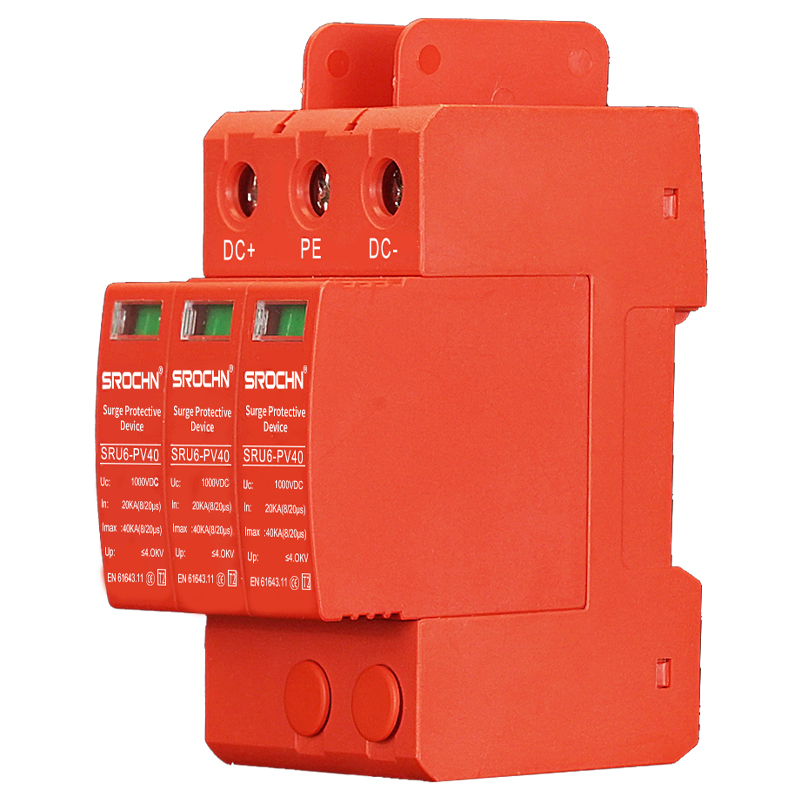

Photovoltaic SPD Surge DC1000V3P40KA Surge Lightning Arrester

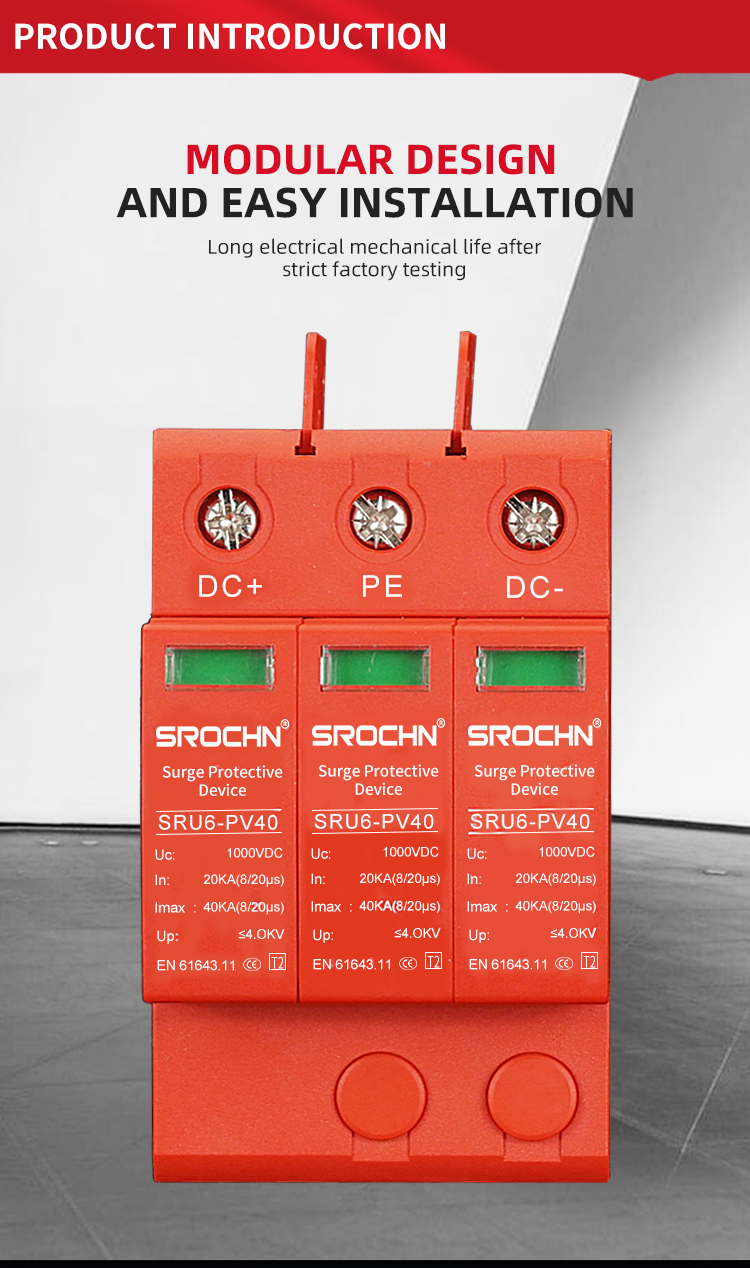

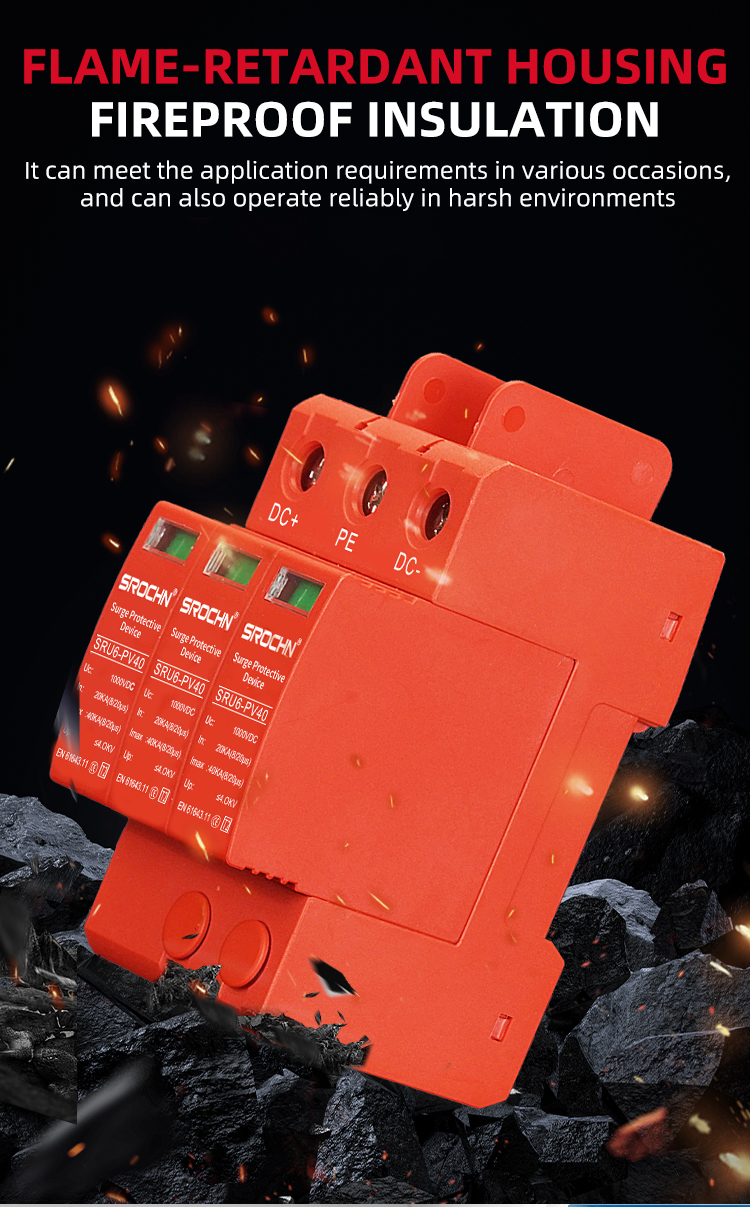

The red 3P surge protector features an elastic design to protect your critical electronic devices from destructive power spikes. This robust and durable device performs well in areas where other devices struggle to achieve it, and can operate reliably even in cold temperatures and high-altitude regions. Its sturdy structure can resist the corrosive effects of severe sandstorms and coastal humidity. Red 3P provides continuous and reliable surge protection for sensitive equipment under various harsh conditions

product details

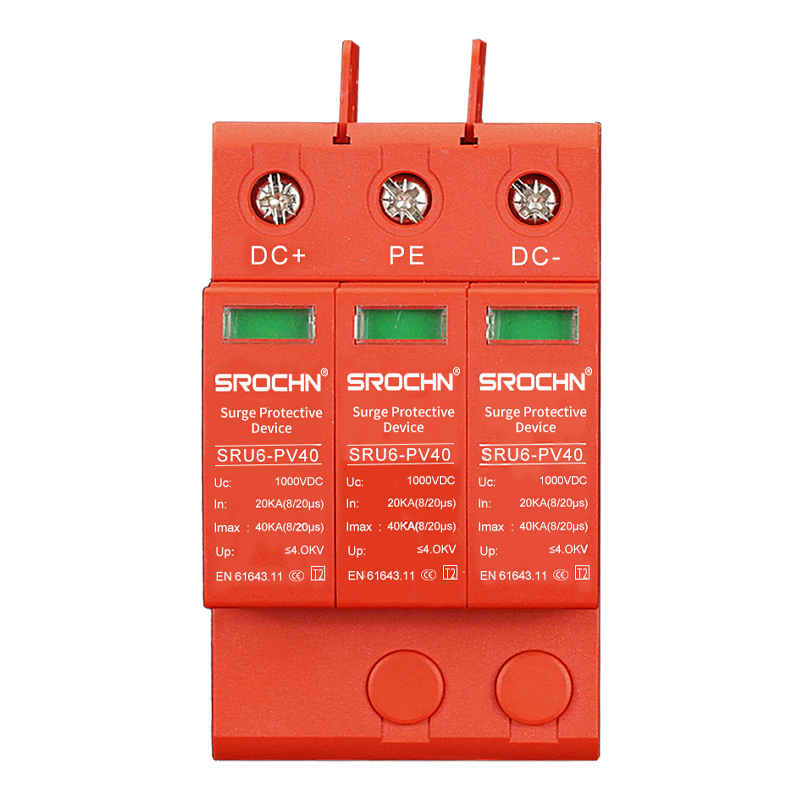

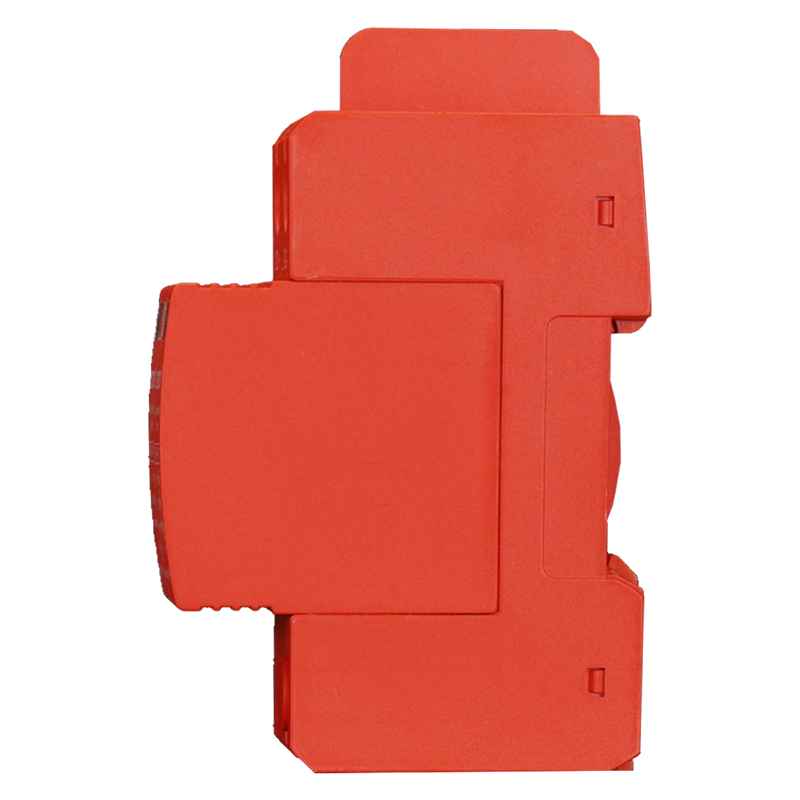

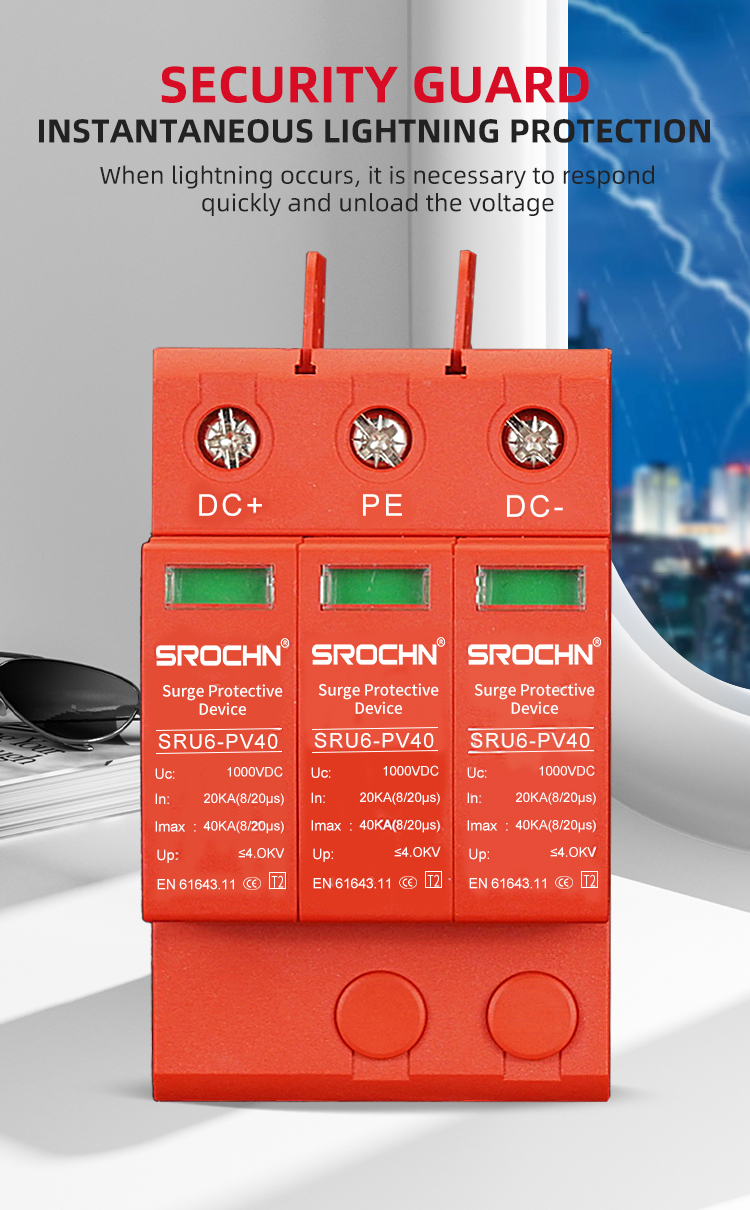

Detailed picture

Product description

In a three-phase four-wire system, protectors are connected between the three phase lines and one neutral line and the ground. Under normal circumstances, the protector is in a high-resistance state. When the power grid deals with surge overvoltage due to lightning strikes or other reasons, the surge protector will immediately conduct rapidly within nanoseconds, introducing the surge overvoltage to the ground, thereby protecting the electrical equipment on the power grid. When the surge voltage passes through the protector and disappears, the protector returns to a high-resistance state, thus not affecting the normal operation of the power grid.

Scope of application

Lightning protection modules (surge protectors) are mainly applicable in gas lines with a (50HZ or 60Hz) impulse current capacity not exceeding (200KA). They limit the amplitude of transient overvoltage, absorb, consume or discharge the energy of surge current, and are suitable for use in situations with high overvoltage categories It can convert the protected electrical components from one overvoltage category to a lower one, and is suitable for household and similar place electrical appliances. It plays a protective role when induced lightning overvoltage and operation overvoltage occur in the circuit.

1. The ambient temperature is -40°C~+80°C.

2. The altitude is no more than 2000m.

3. The relative humidity is not greater than 90% (25°C).

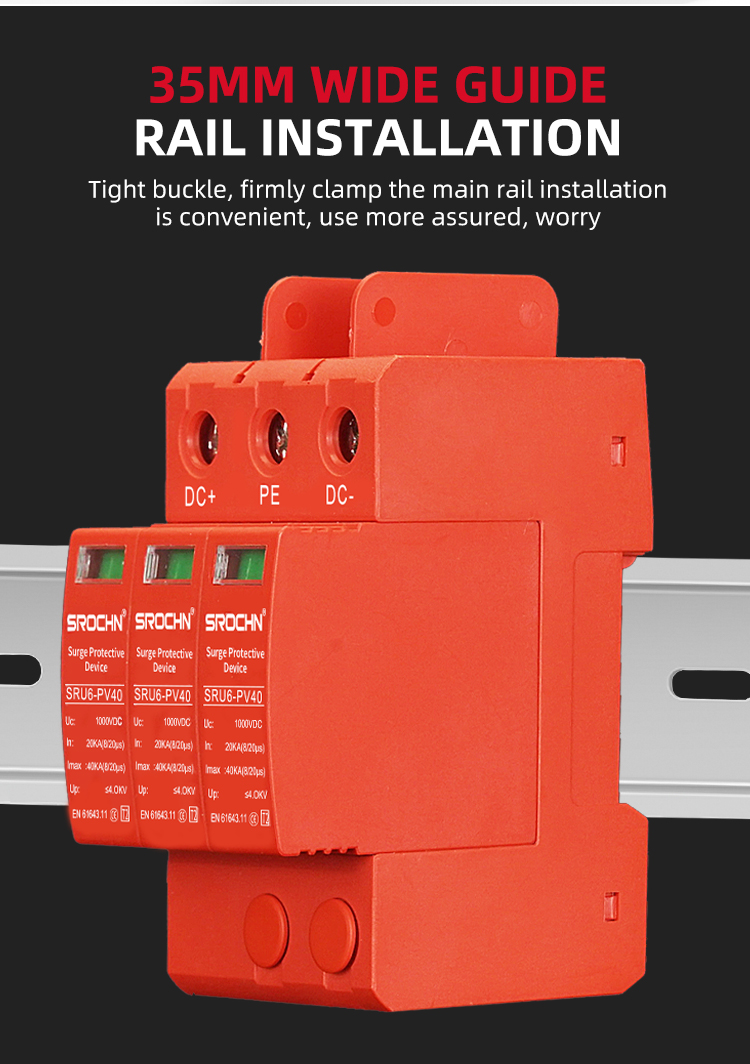

4. The installation method is compatible with the TH35mm wide guide rail.

5. Applicable grounding pump flow "IT" "TT.TS, TN-N-S".

6. The inclination with the vertical surface does not exceed 5°.

7. A place where there is no impact, vibration or shaking.

8. There is no explosive danger in the medium, and there is no gas and dust in the medium that is sufficient to corrode metal and destroy insulation.

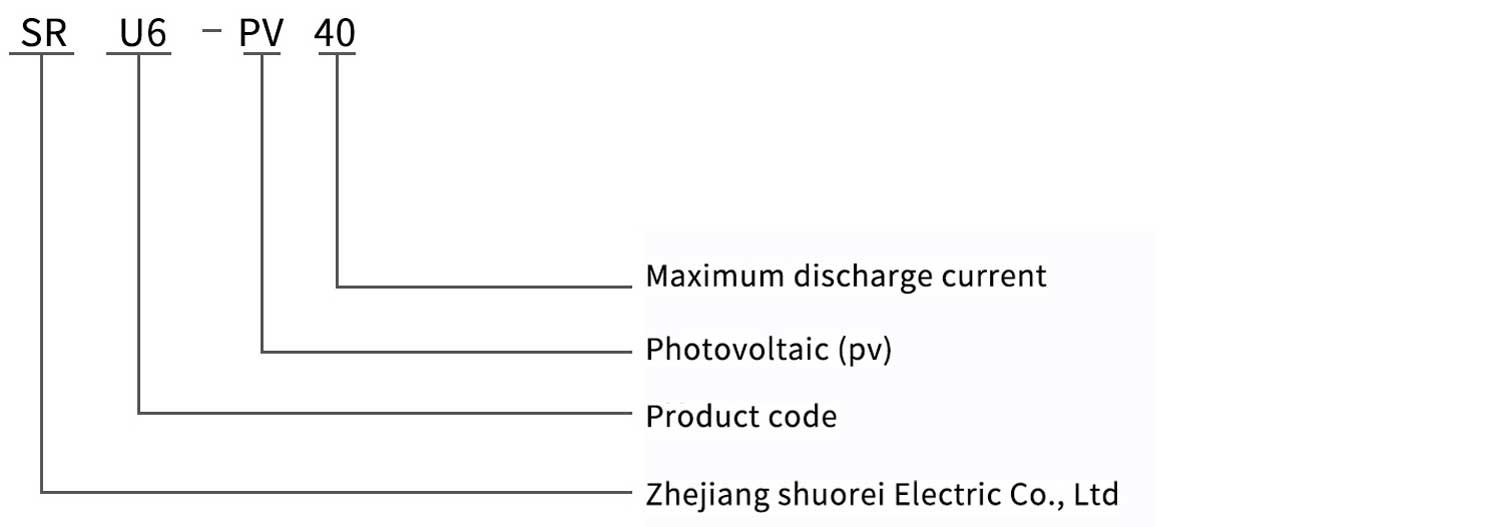

Type Instruction

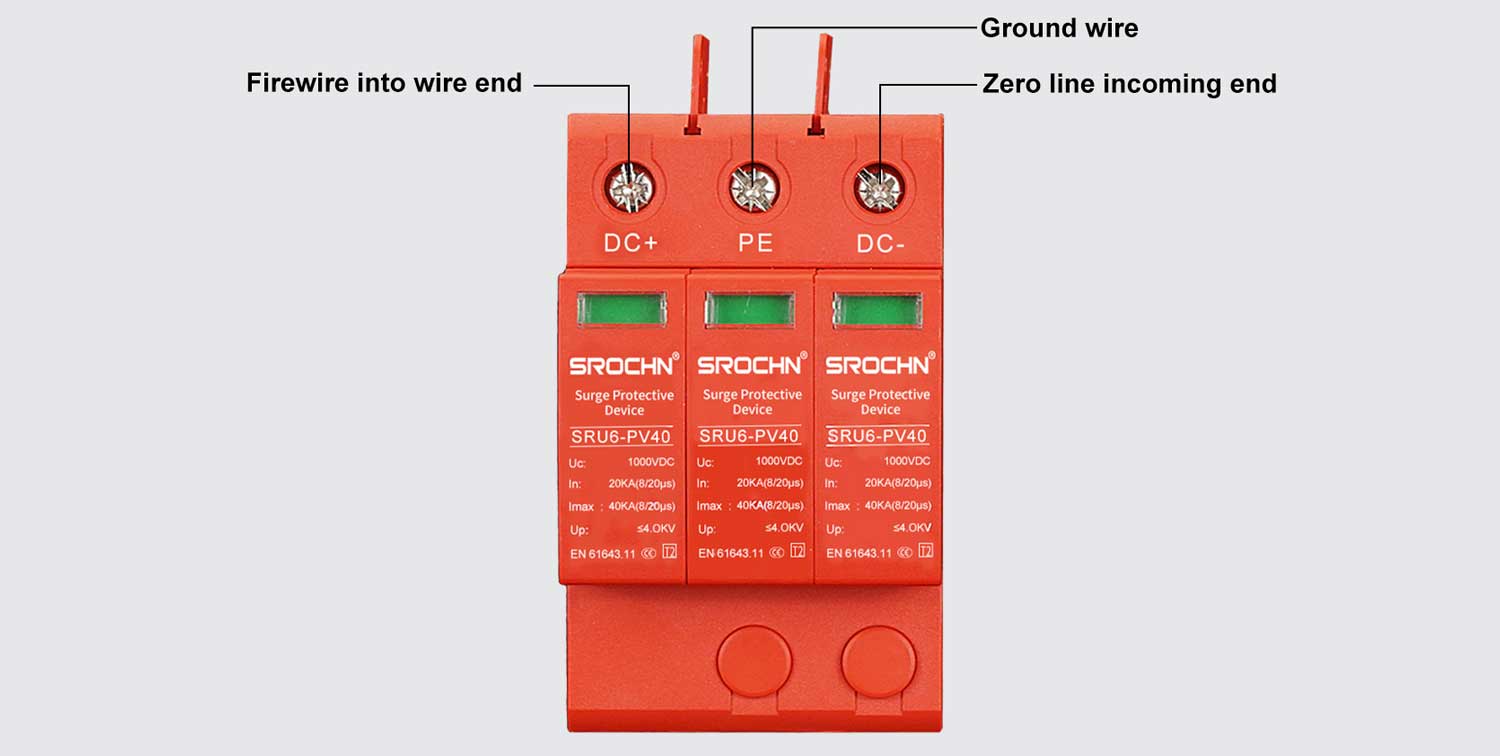

Wiring Method

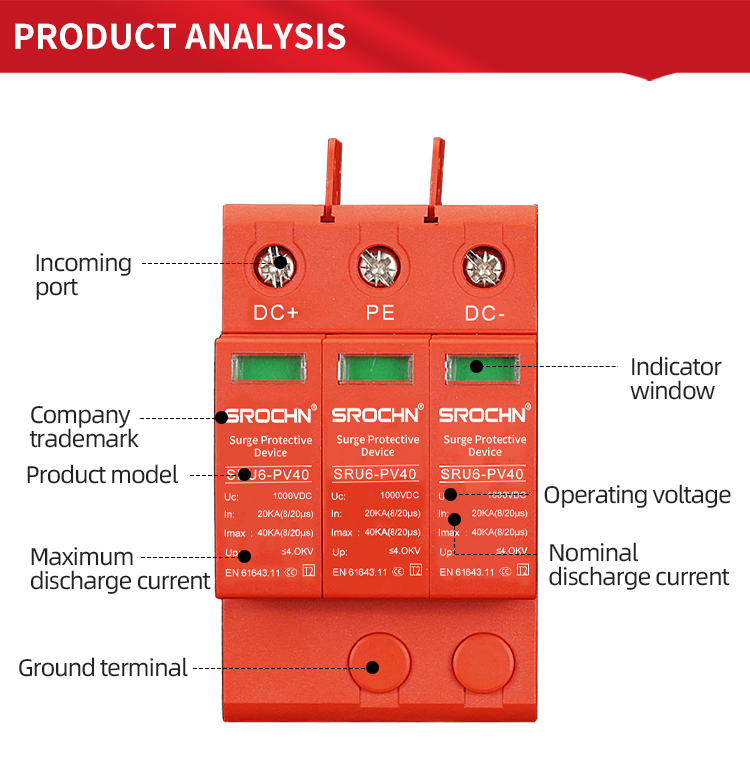

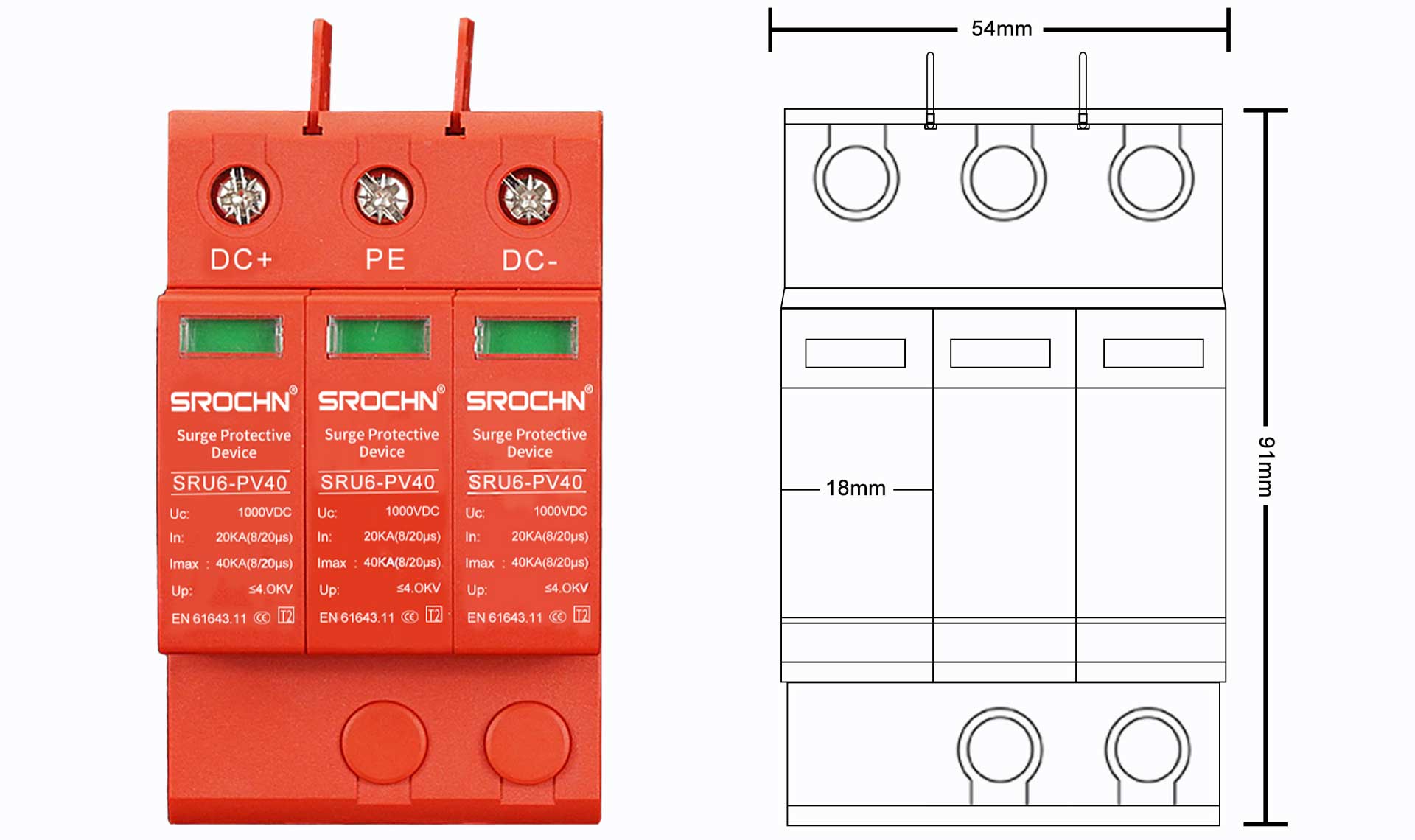

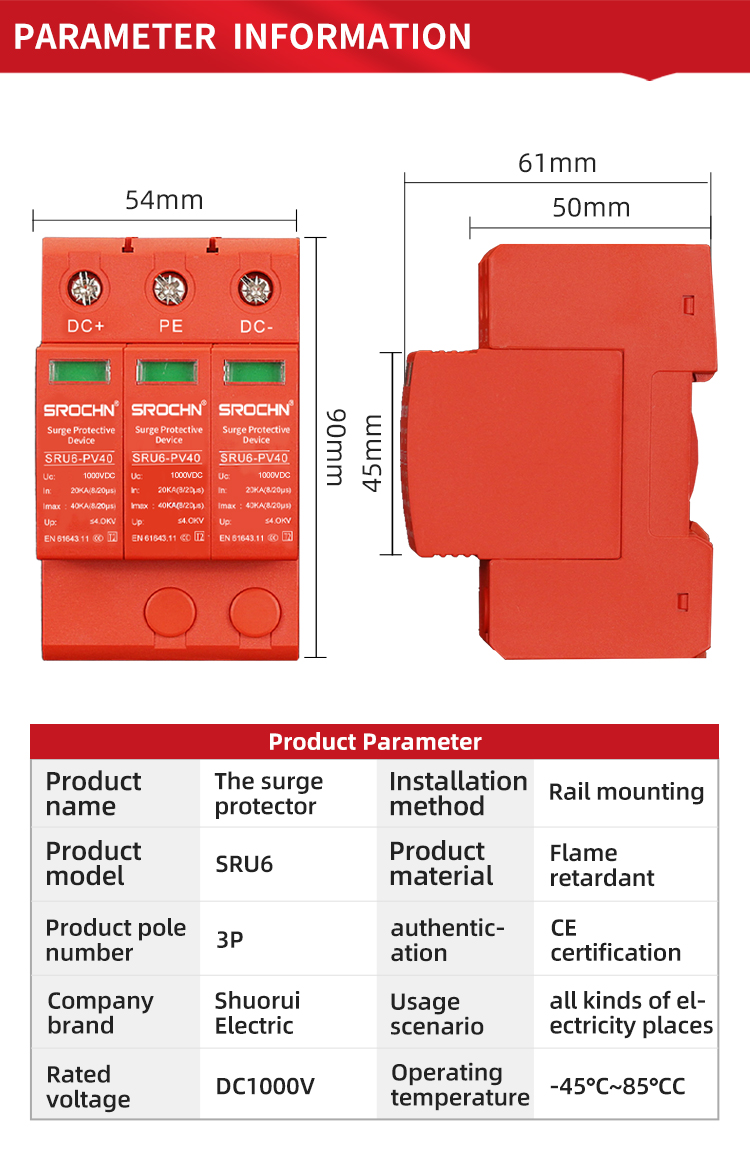

Parameter Information

Product name	Surge Protector	Voltage protection level up	≤4.0kV
Product model	SRU6-PV40	Max discharge current Imax	40KA（8/20u）
Dc resistance value	1000VDC	Nominal discharge current In	20KA（8/20u）
The number of	3P	Response time NS	<25
Protection level	IP20	Failure indication	Aging failure: Green normal, red failure
