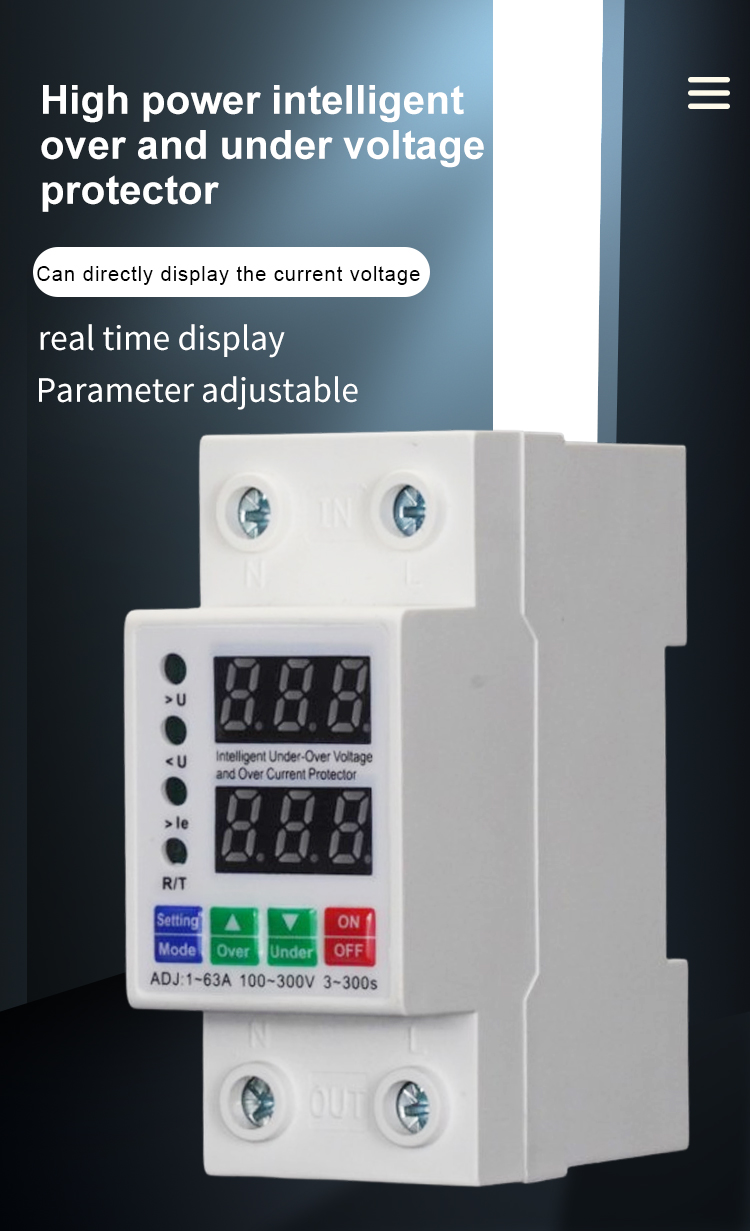

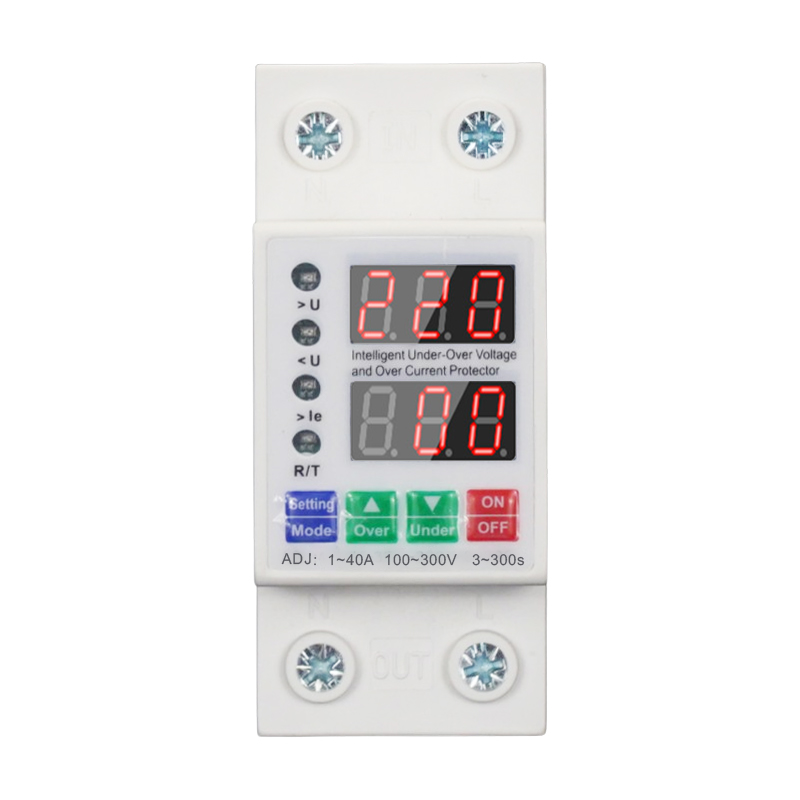

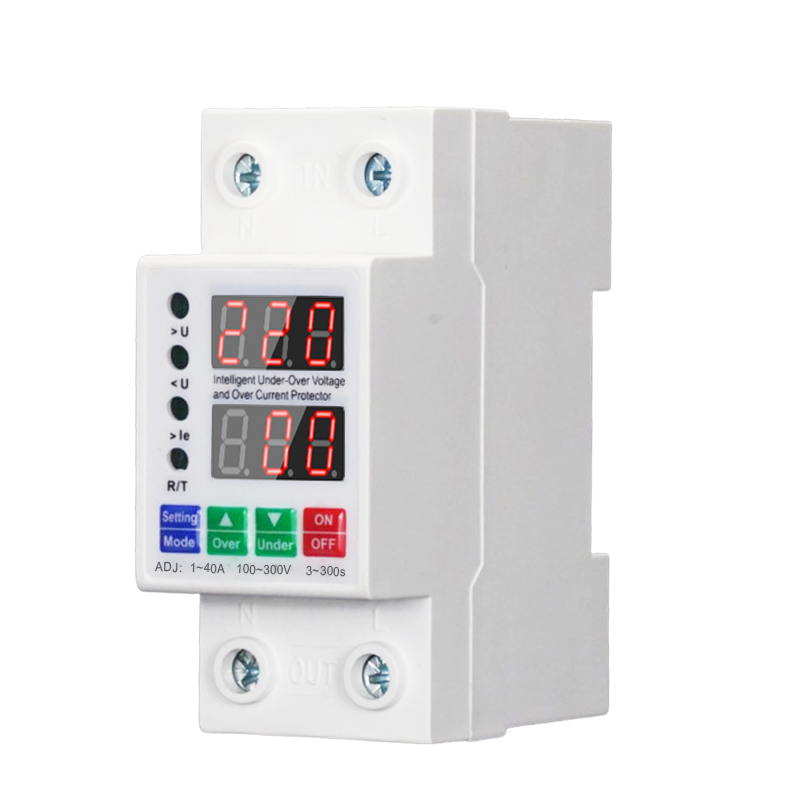

The Automatic Recovery of Overvoltage and Undervoltage Dual Display, with Voltage and Current Ranging from 1 to 63A, can be Set with a Protector
Product description
Dual display automatic reset overvoltage protector is a new generation ofhome apliance protection device developed byour company acording to the curent powersupply situation.

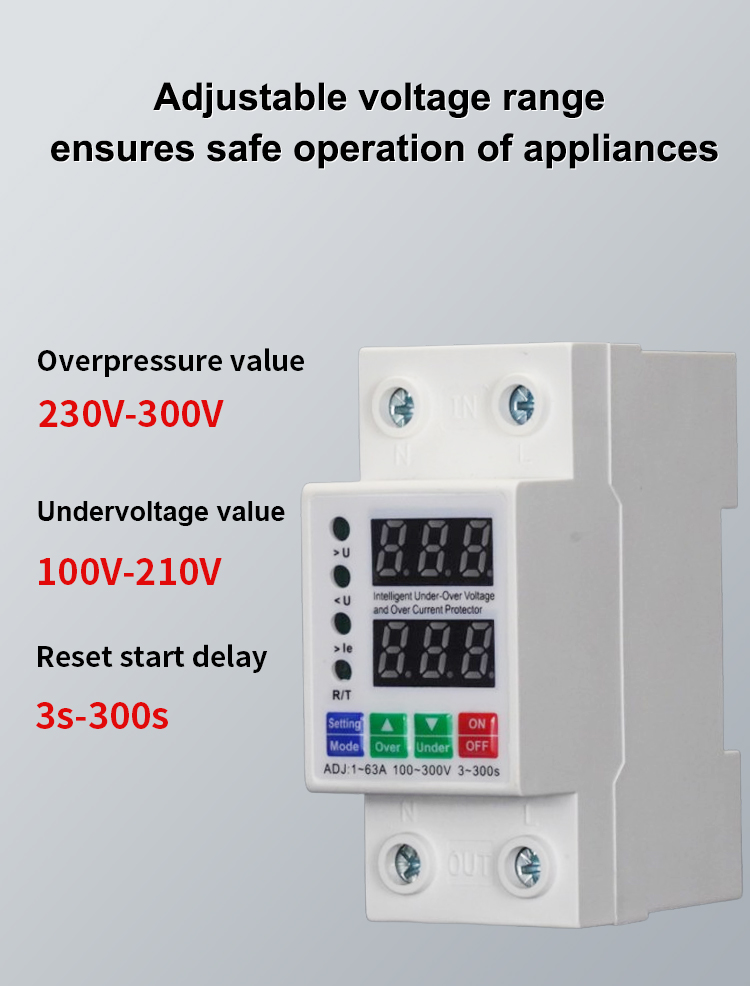

Overvoltage protection range value :230~300V; safety reference value of household appliances can be set by oneself: 275V.
Overcurrent protection range value :1~63A can be set by yourself and is more precise than current limiter.

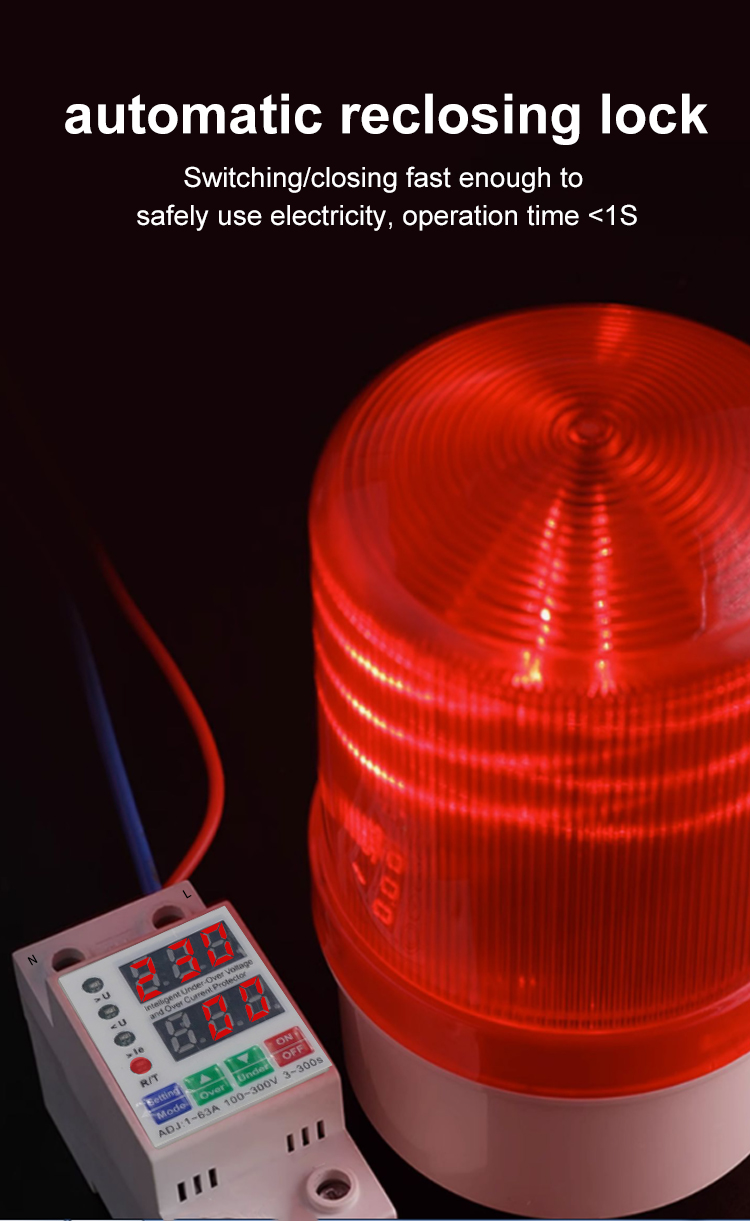

Delay protection:in case ofundenvoltage r overcurent,the powerwil be cut of automaticaly and restart automaticalyacording to the time set by us.Delagy ime: 3~300slyou can set ityoursel.
Matters Needing Attention
1. The equipment must be installed by qualified professionals.
2. Before operating the device, disconnect all power supplies and do not touch any teminal when thepower supply is connected.
3. Verify that terinals are propery connected.
4. No mater whether the equipment is in noral operation, do not disassemble or repair otherwise.producers and sellers no responsibility is accepted
5. Do not use the equipment in places that may be corroded by gas, strong sunlight and rain.
6. Clean equipment with a dry cloth
7. Fallure to comply with these instructions will result in seriousInjury or serious accldent.

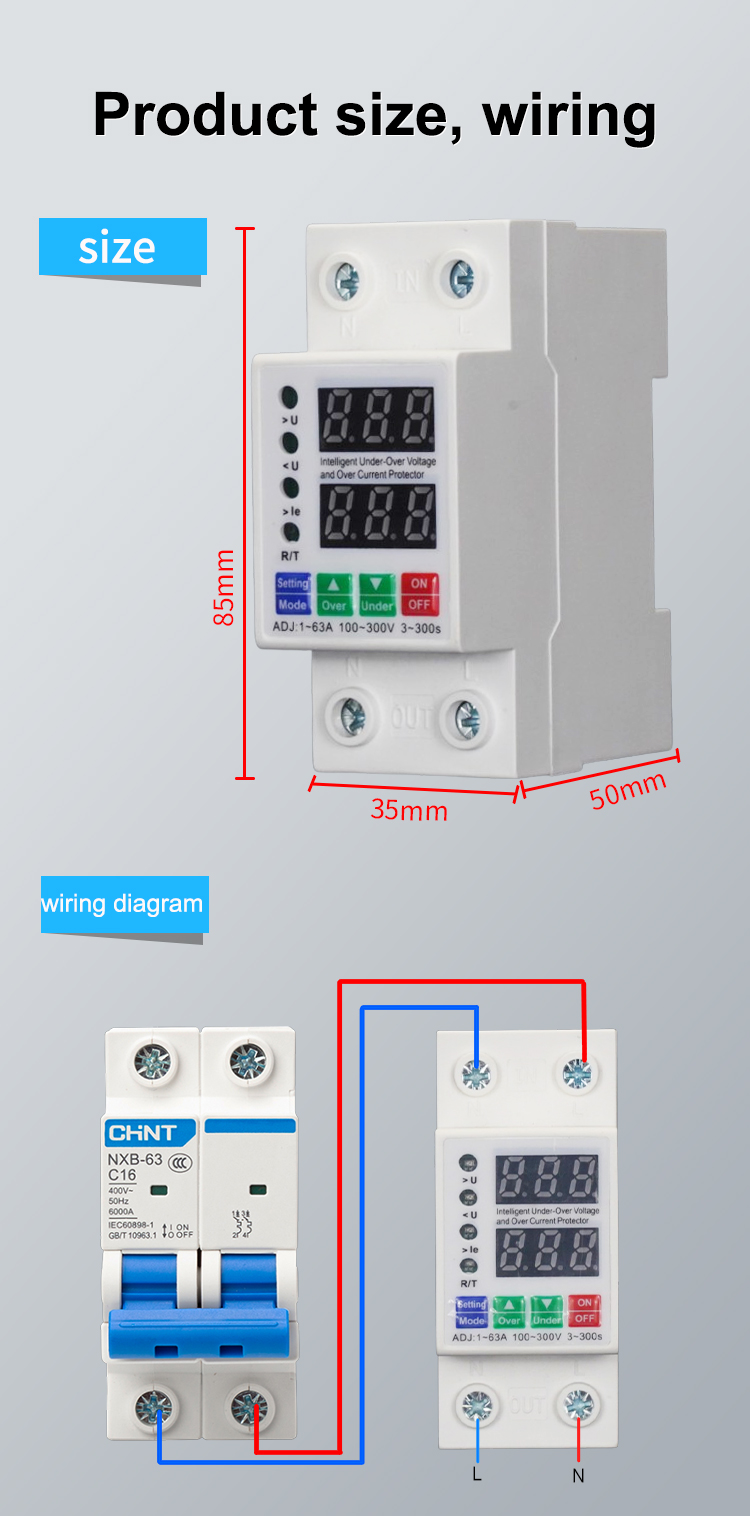

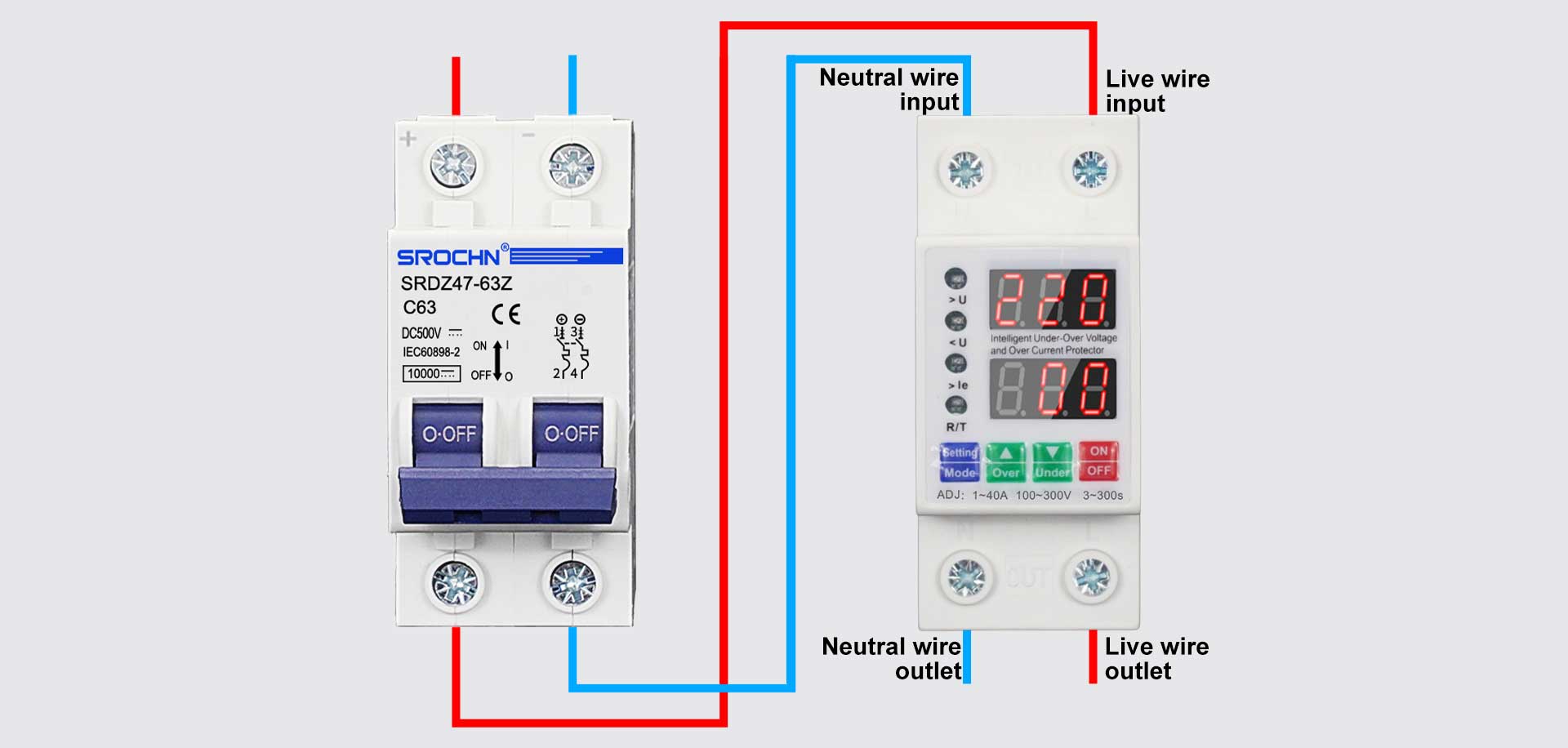

Wiring Method
Parameter Information
| Product name | Intelligent Under-Over Voltage and Over Current Protector | Undervoltage value | 100V~210V |
| Efective Current Range | AC0.1A~63A | Overvoltage value | 230V~300V |
| Efective Voltage Range | AC80A~300A | Reset start delay | 3s-300s |
| Frequency Range | 40Hz~70Hz | Table Update | 0.1s~1.0s |
| Screen Refresh Rate | >1000Hz | Time Range | 1s~999s |

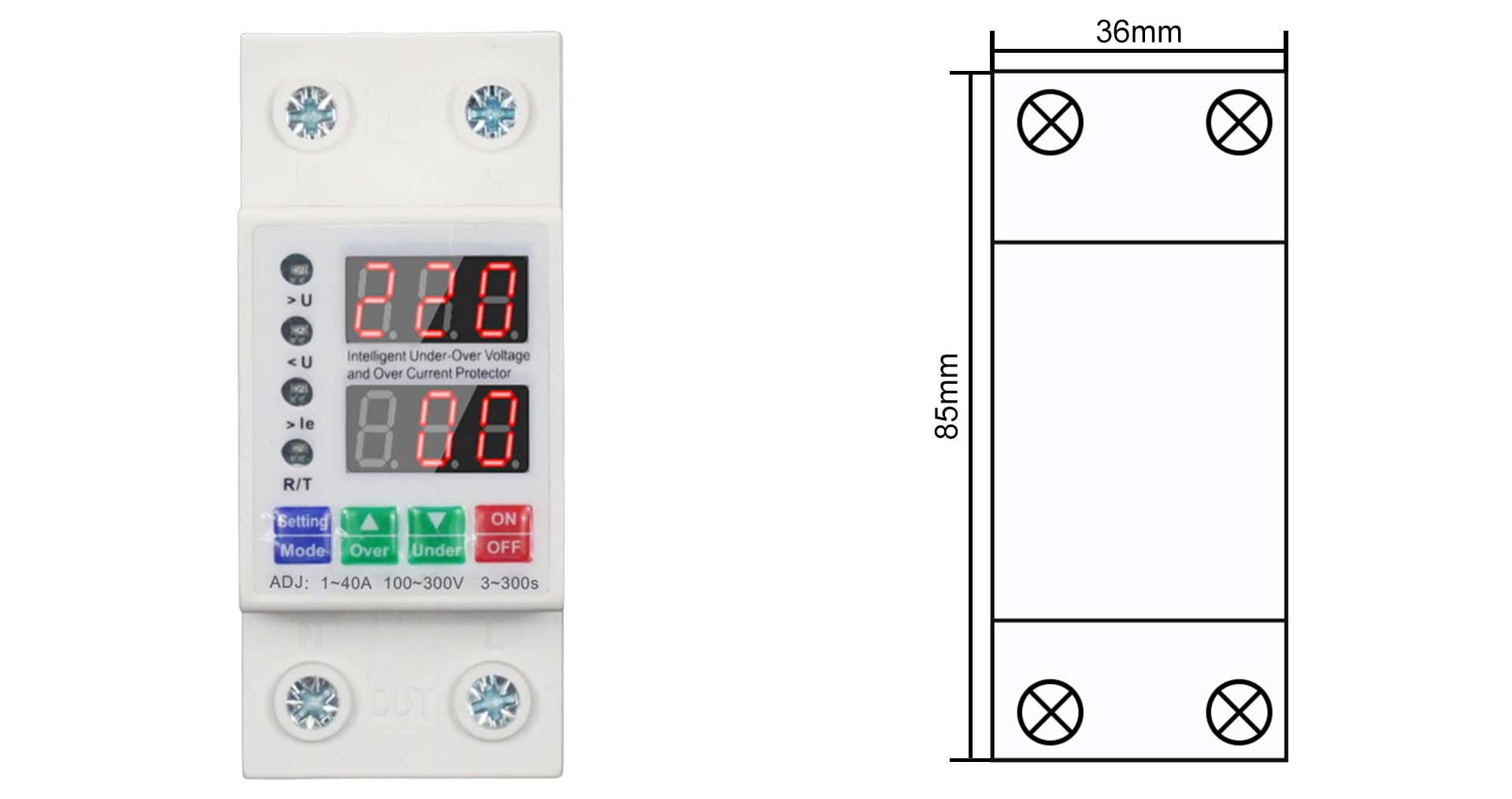

Product Size
